Christian-Marty.ch´s Electric Things

Elka F000583

March 22, 2025

The ELKA F000683 is a Reverb Amplifier board.

It was used in the Elka Concorde 100 from 1977.

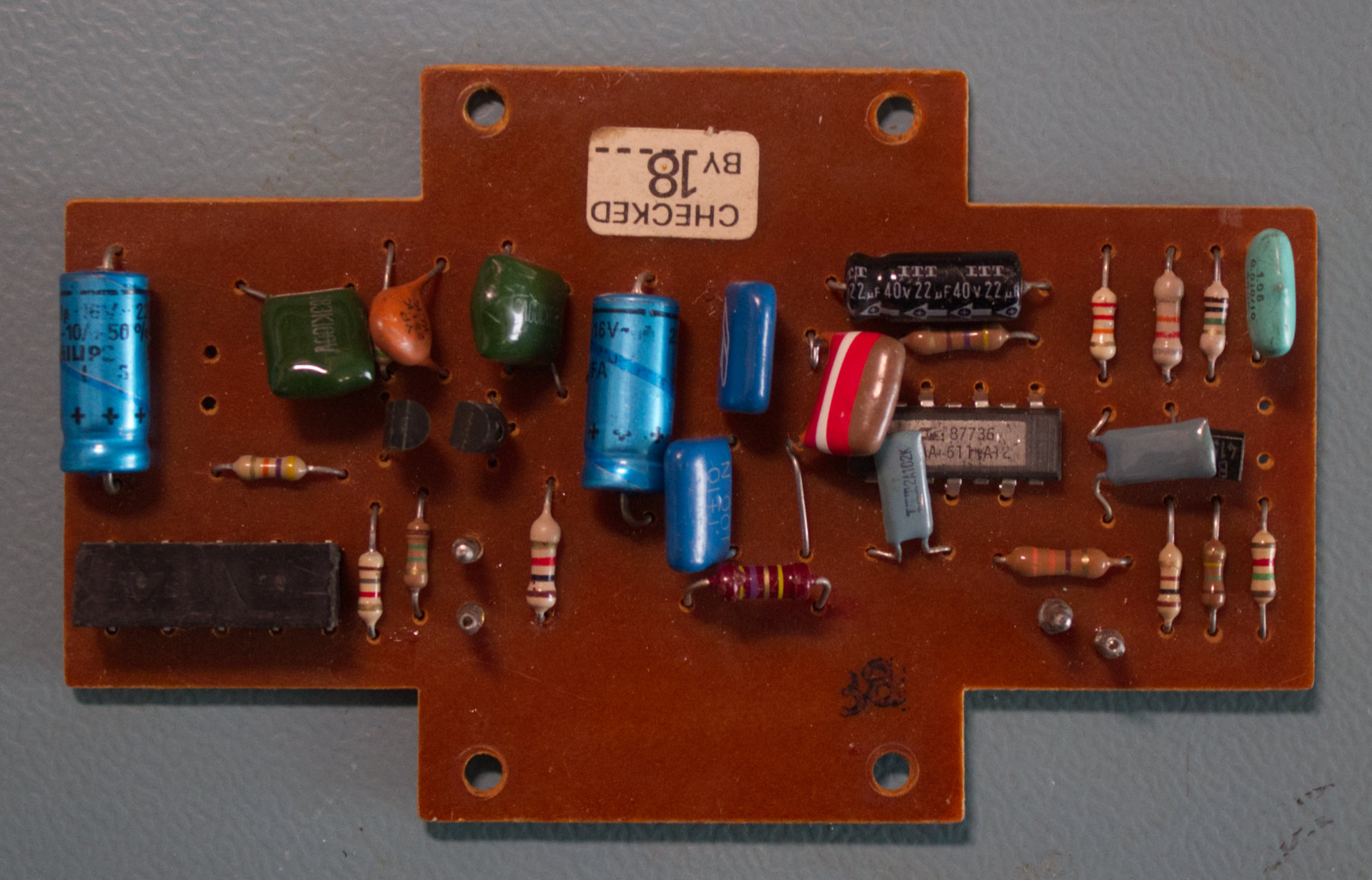

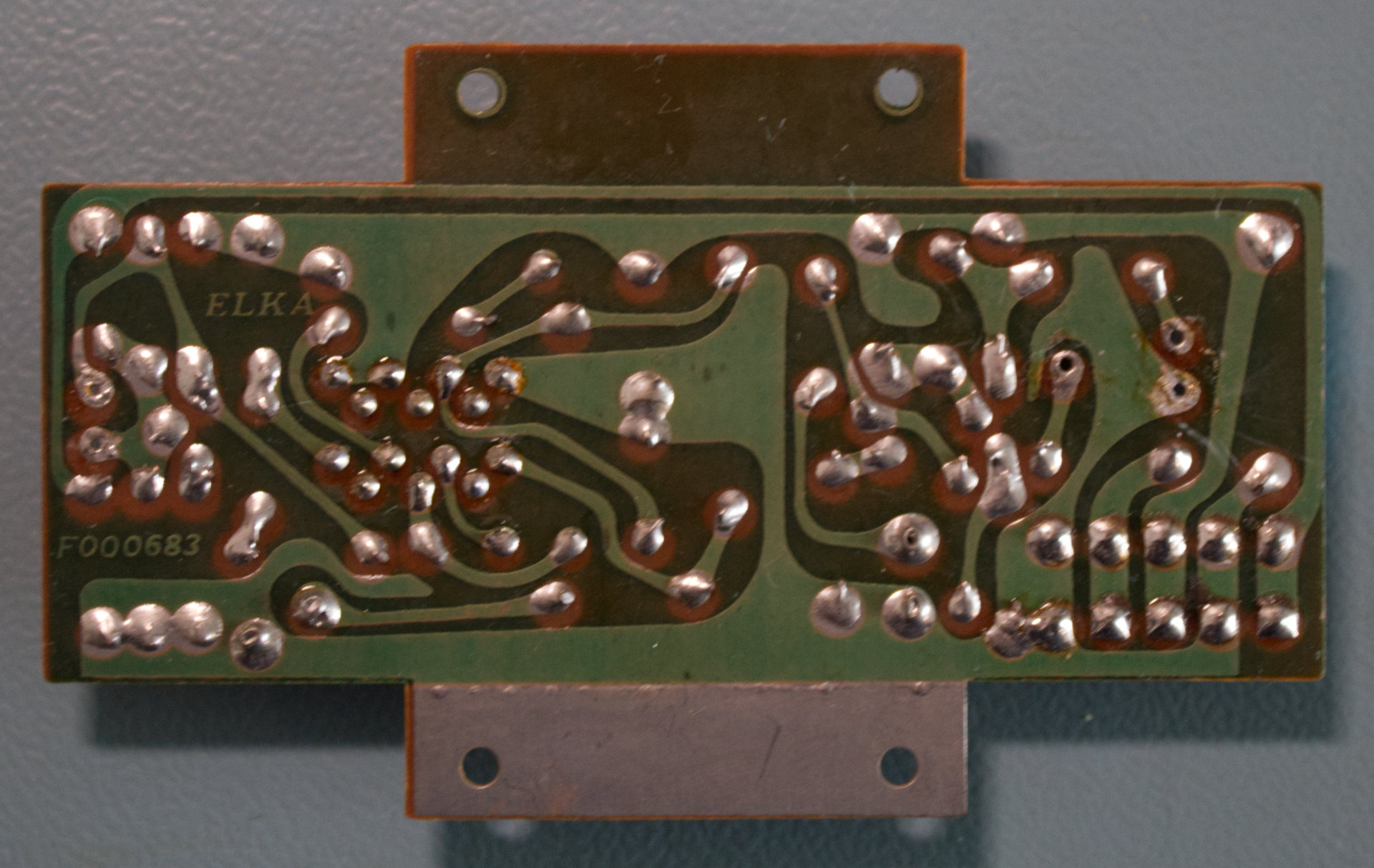

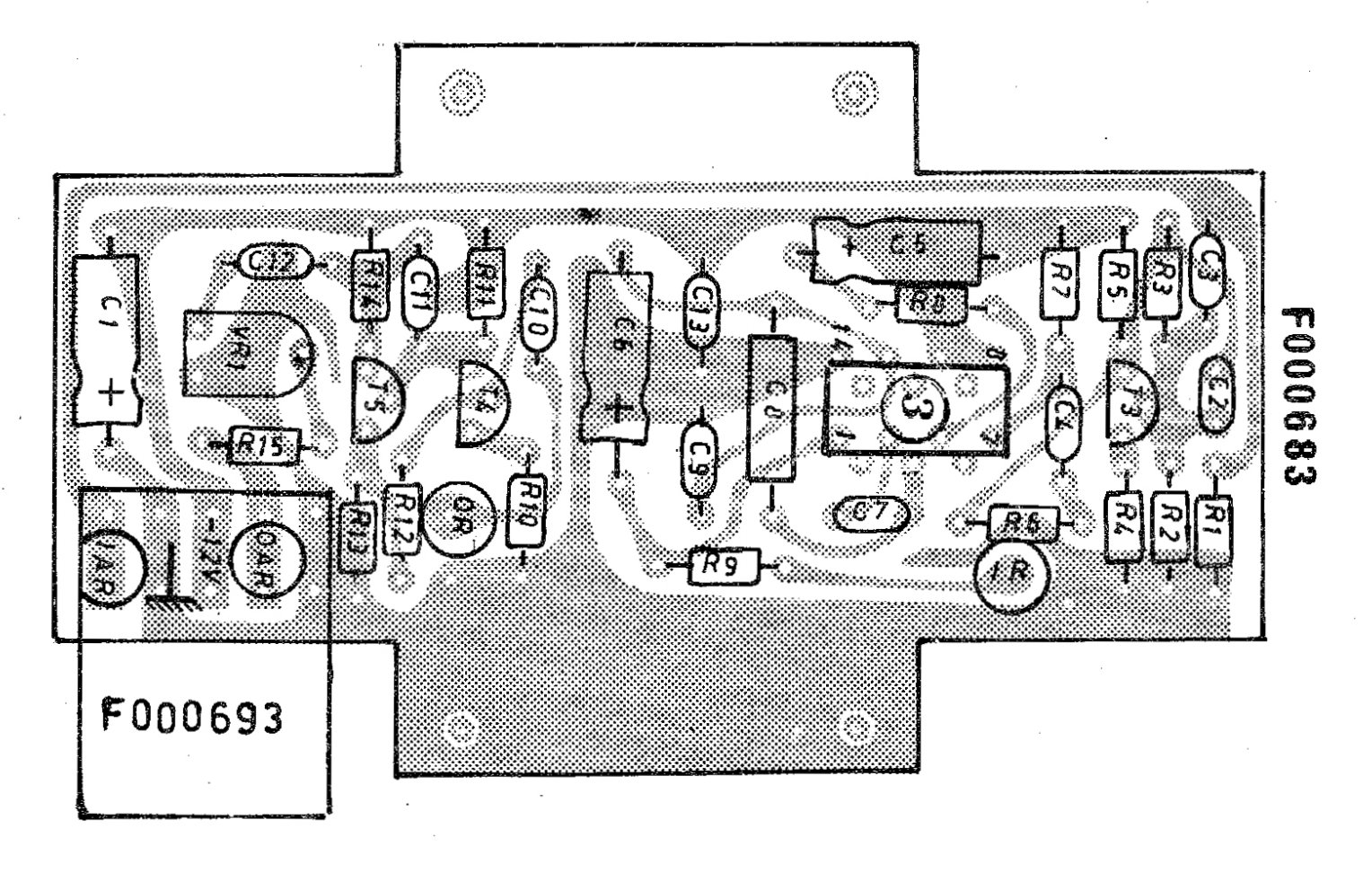

PCB

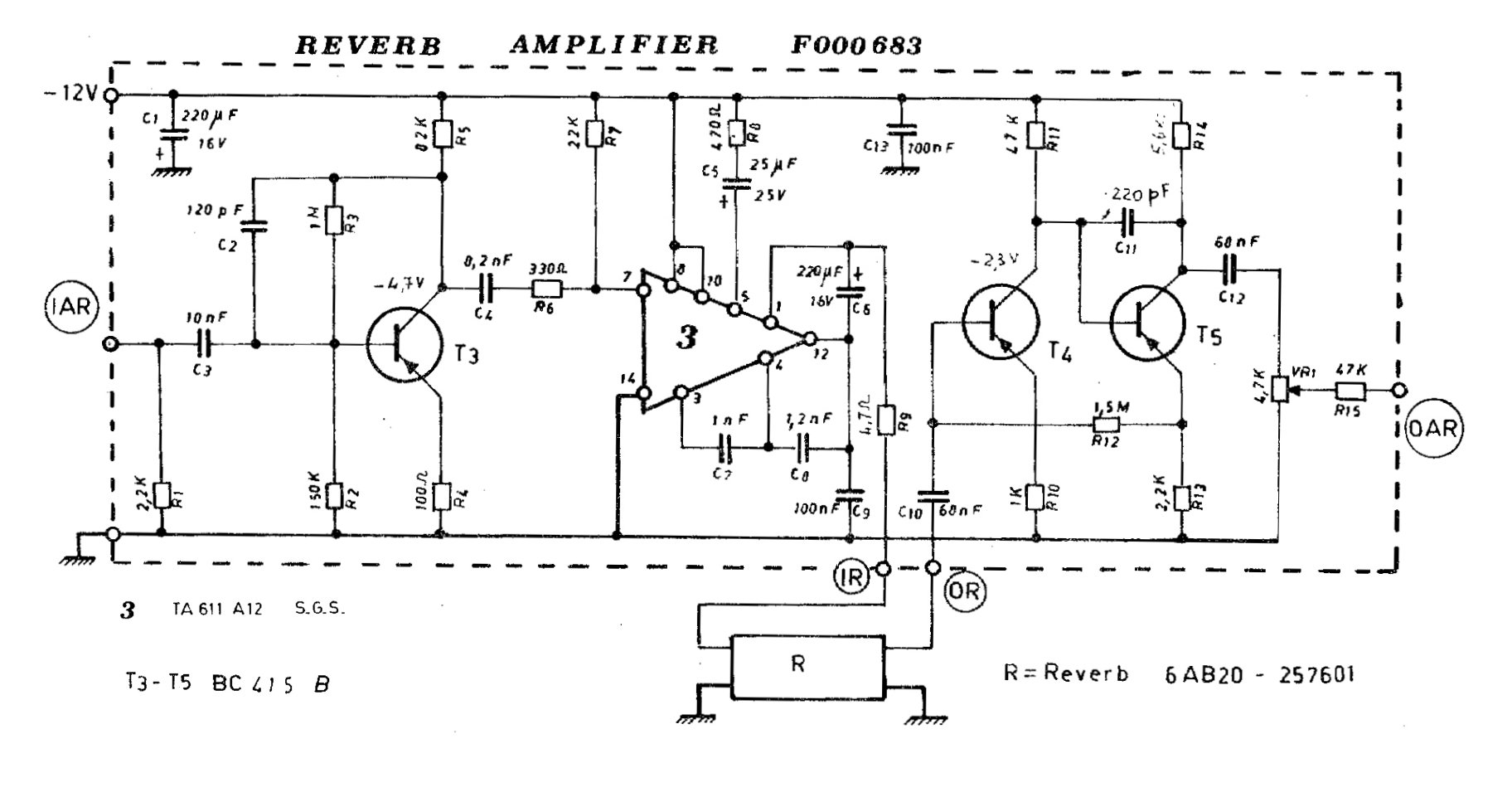

Schematic
