Elka 410CST0926

March 11, 2025

The Elka 410CST0926 is a Pedal Volume Control board.

It was used in the Elka Artist 707 from 1977.

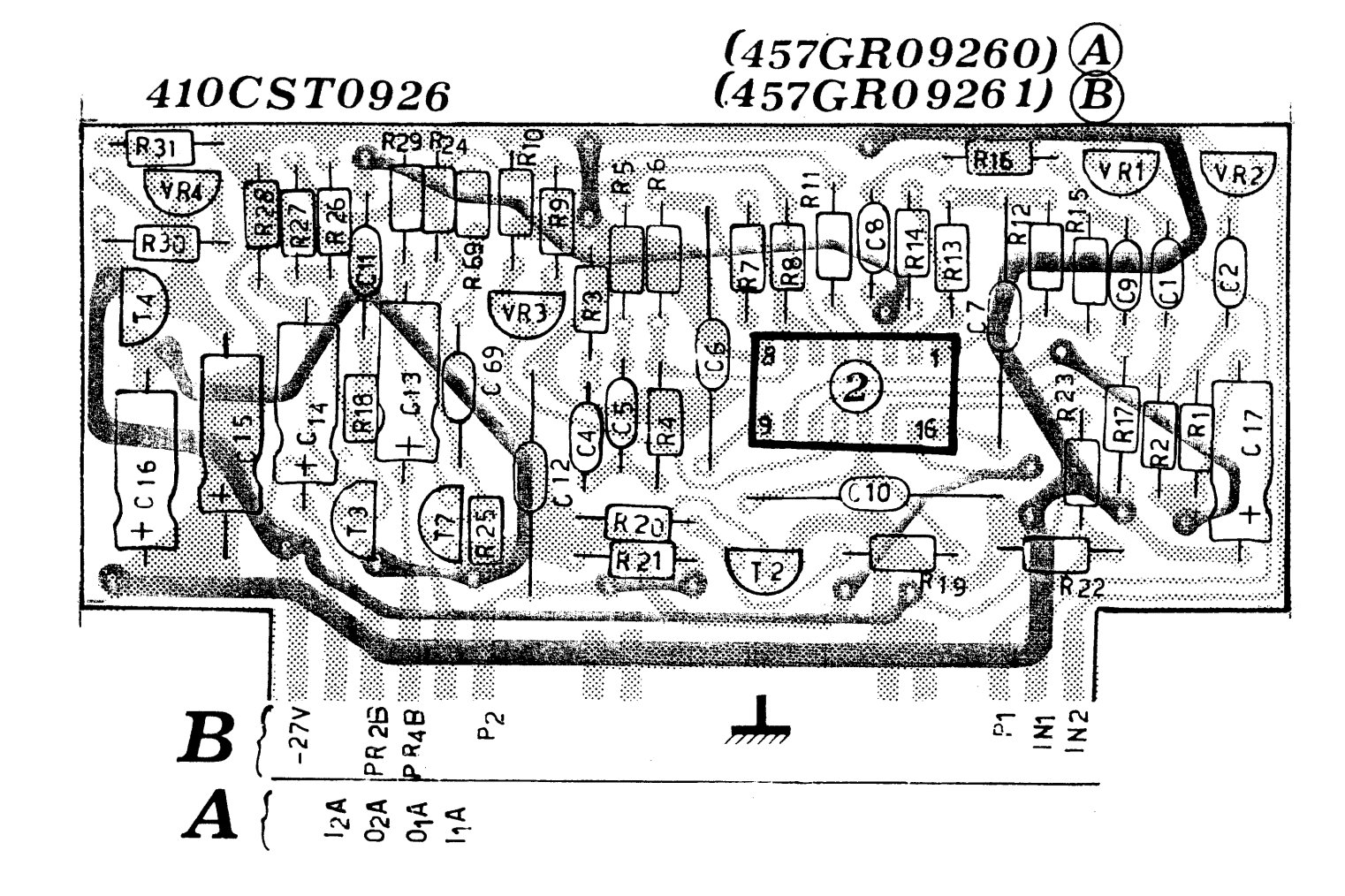

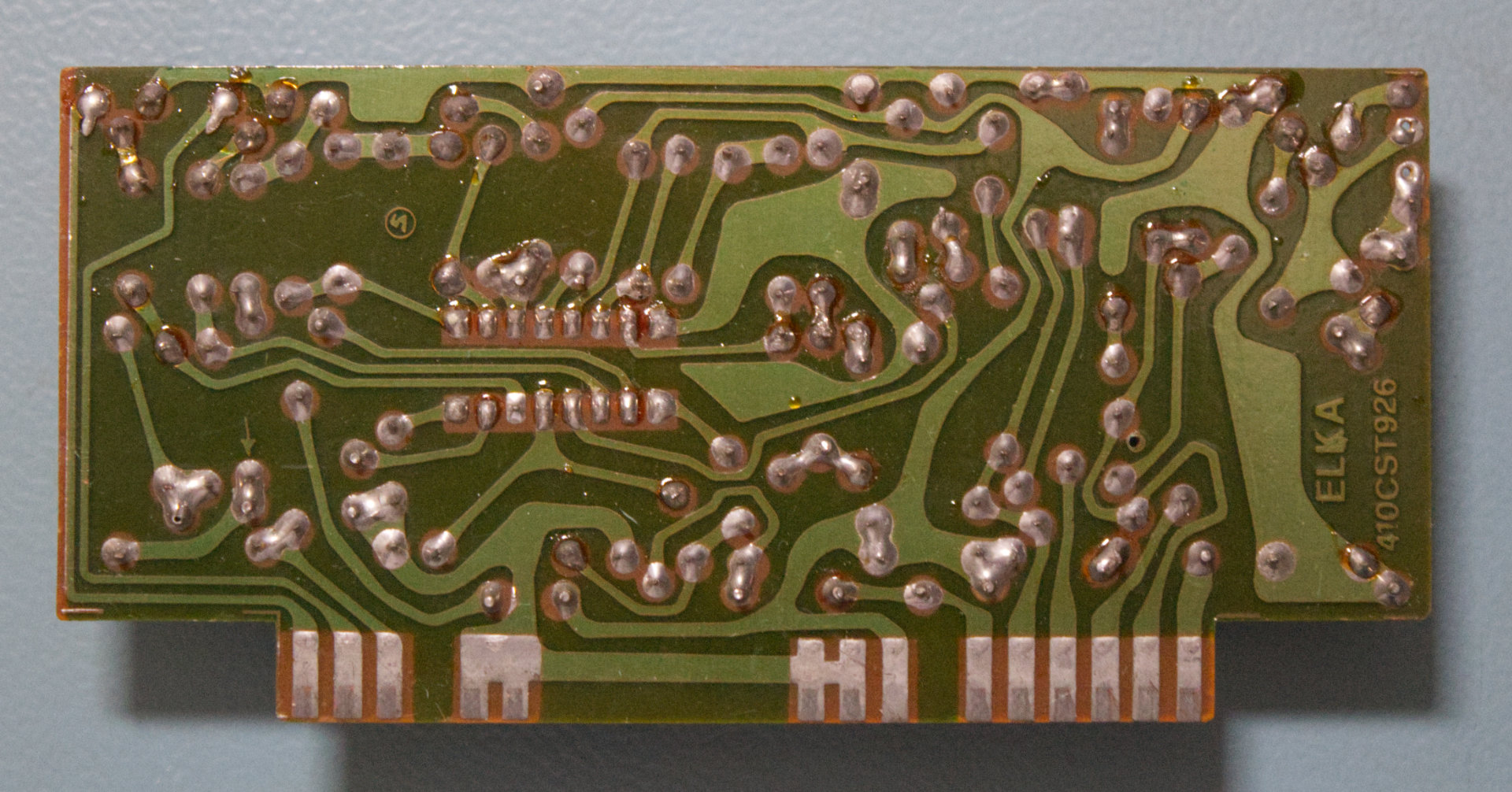

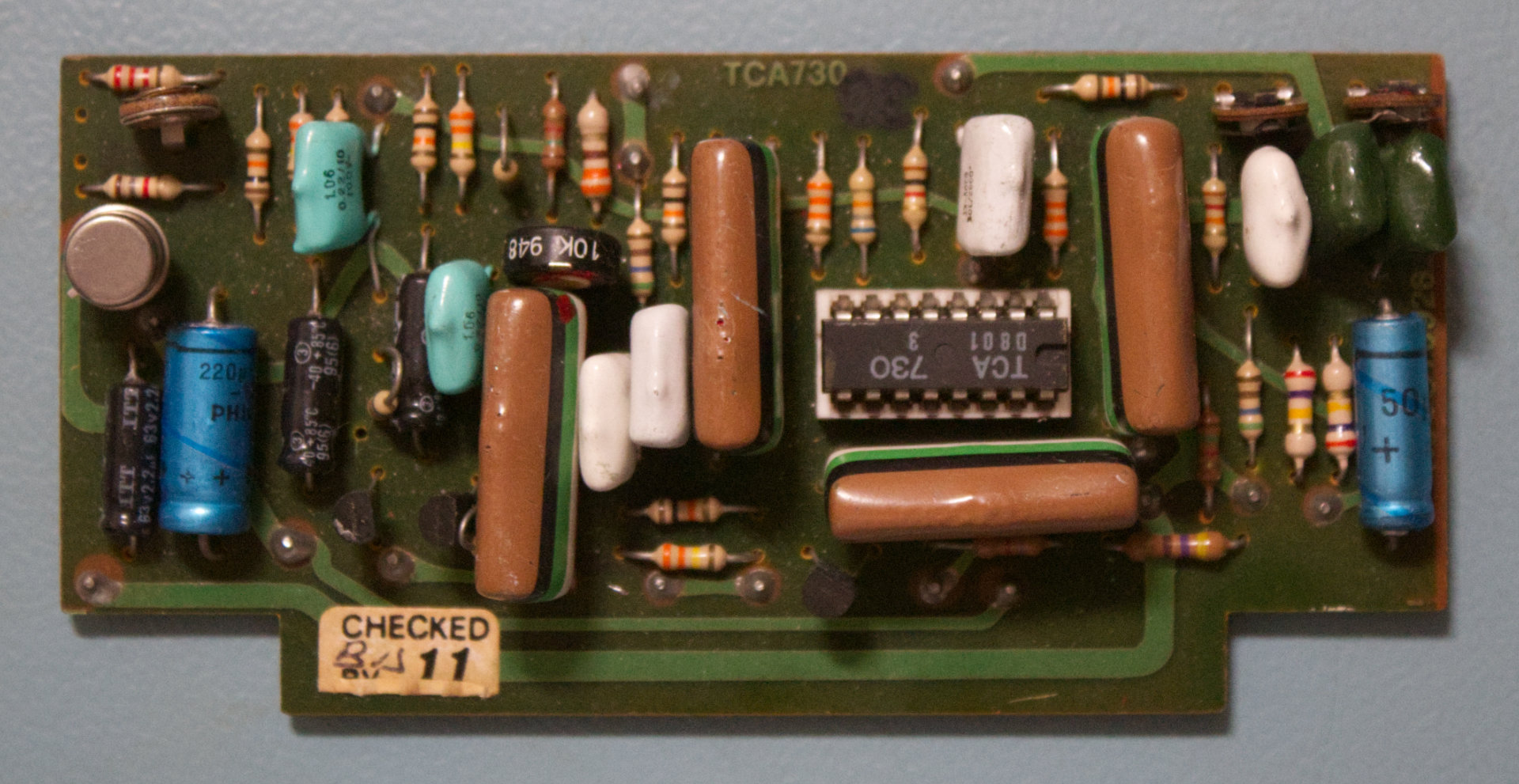

PCB

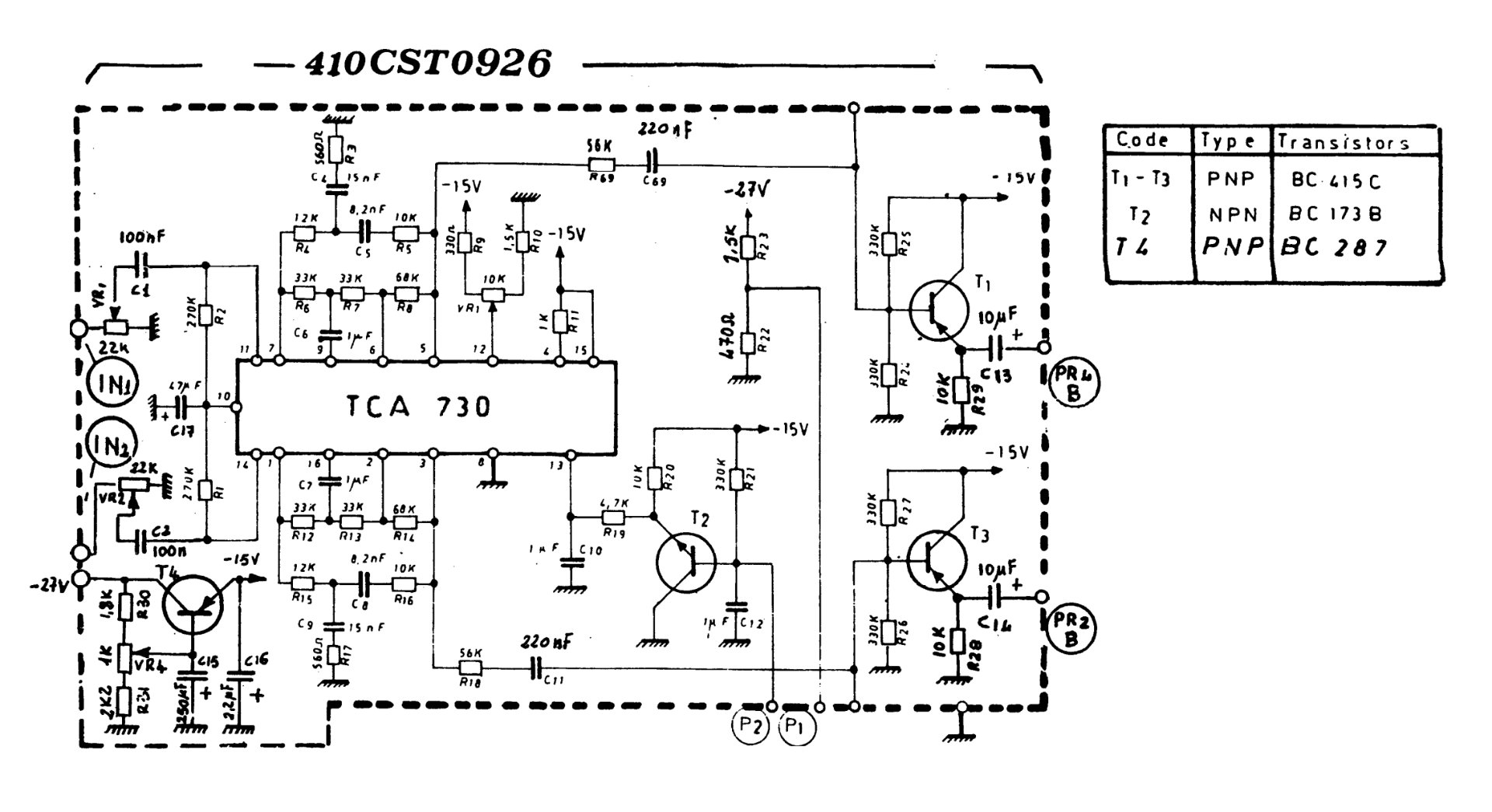

Schematic
