Elka 410CST0820

March 8, 2025

The Elka 410CST0820 is a mono amplifier.

Two of these PCBs have been used in the Elka Artist 707 from 1977.

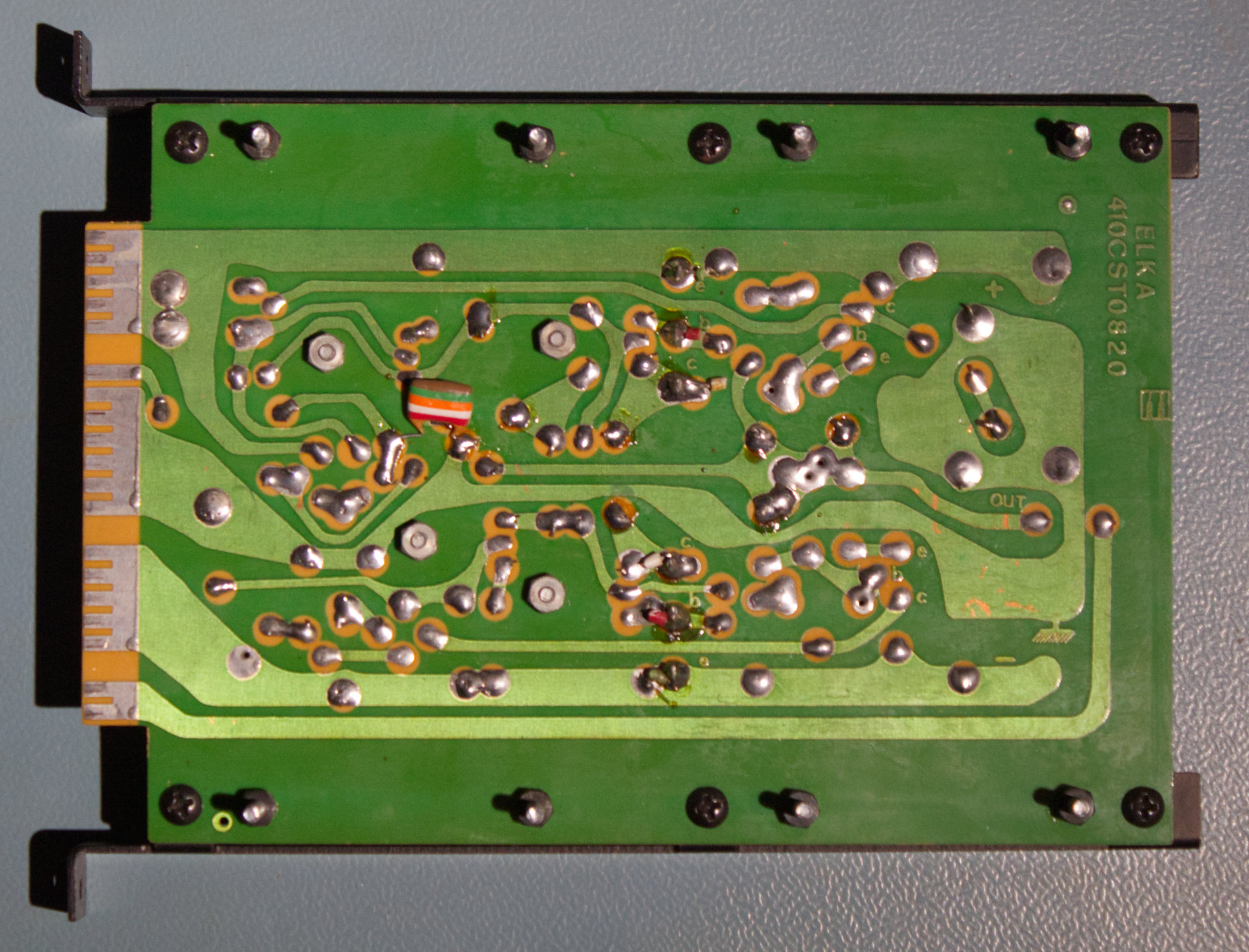

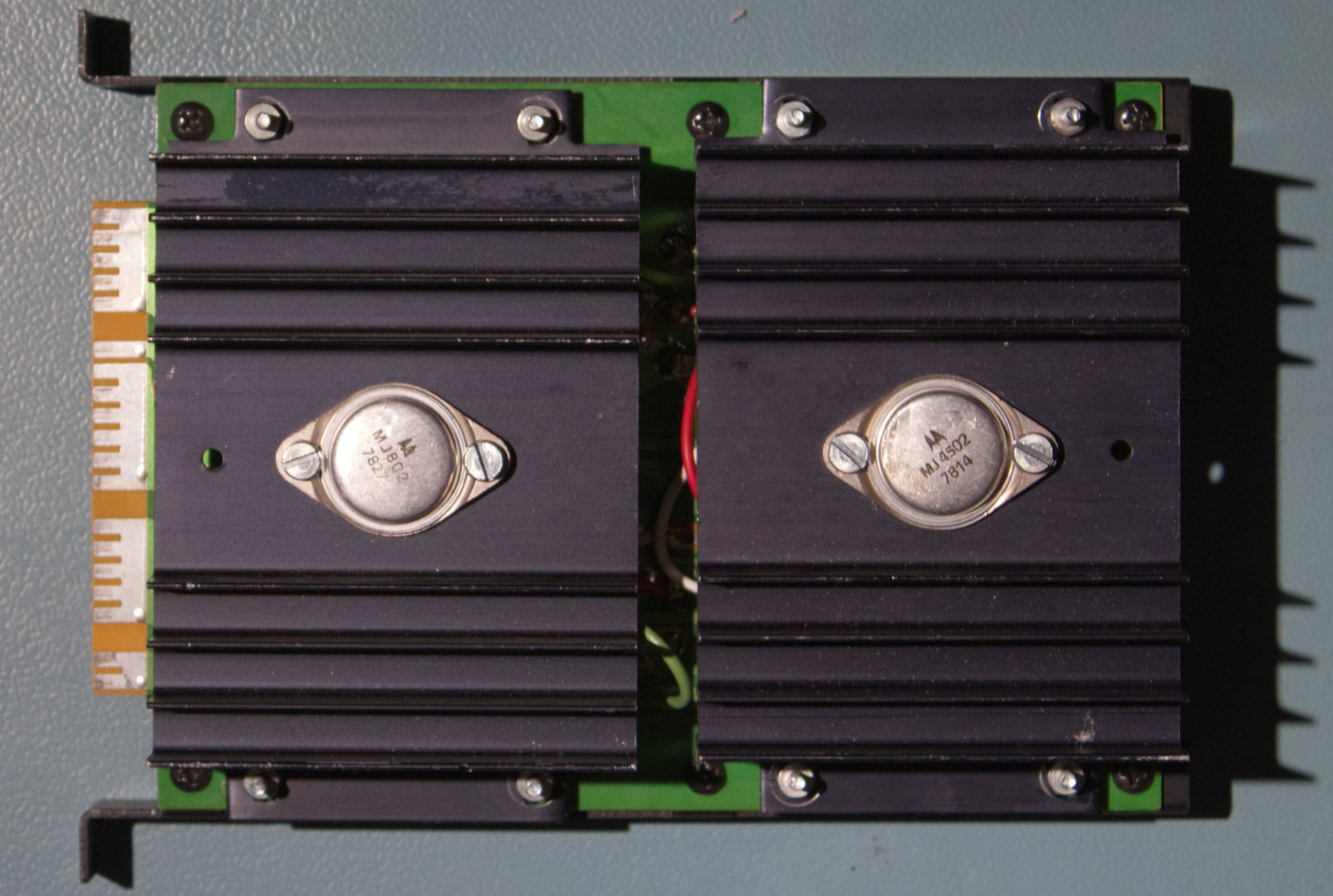

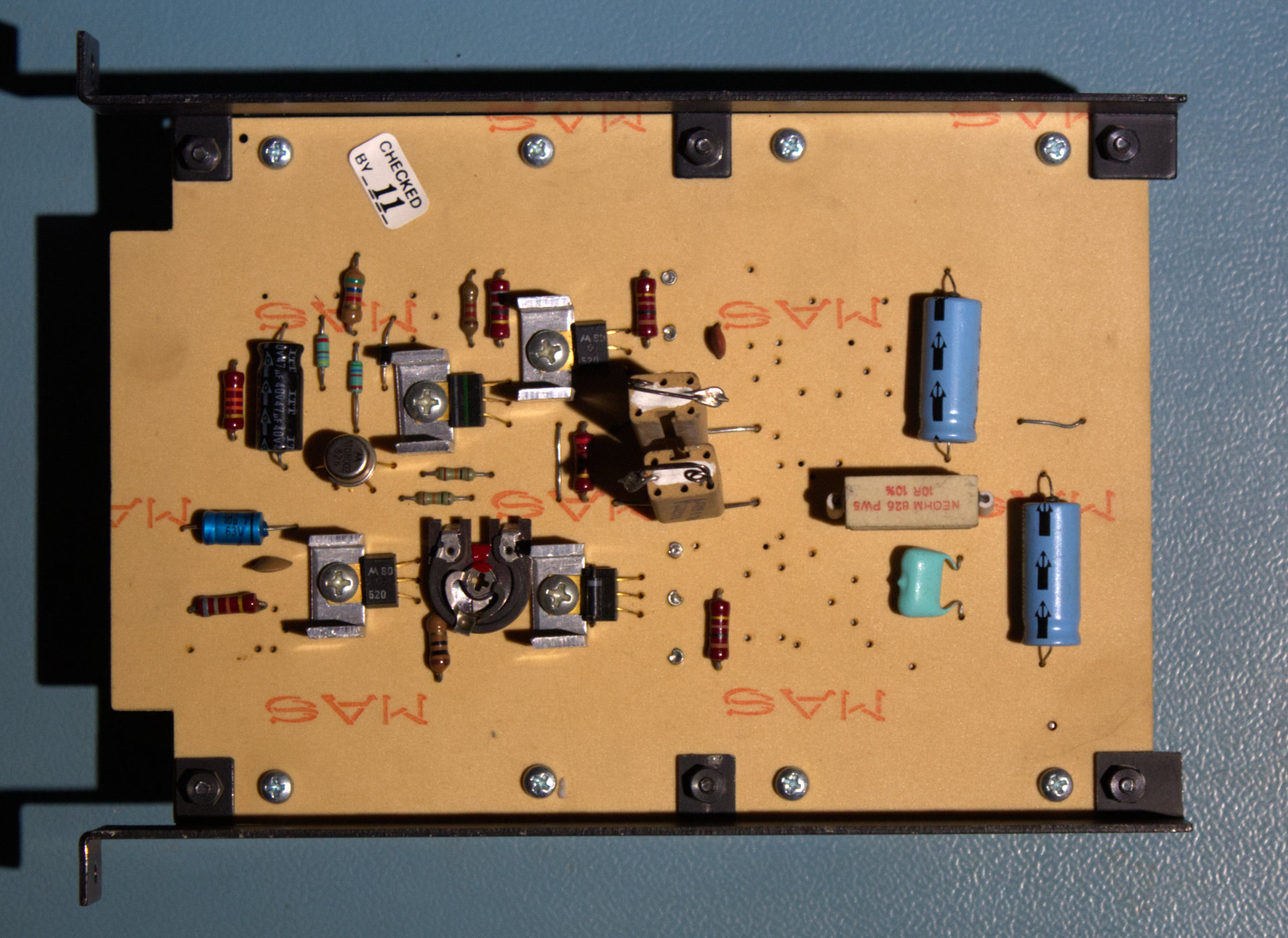

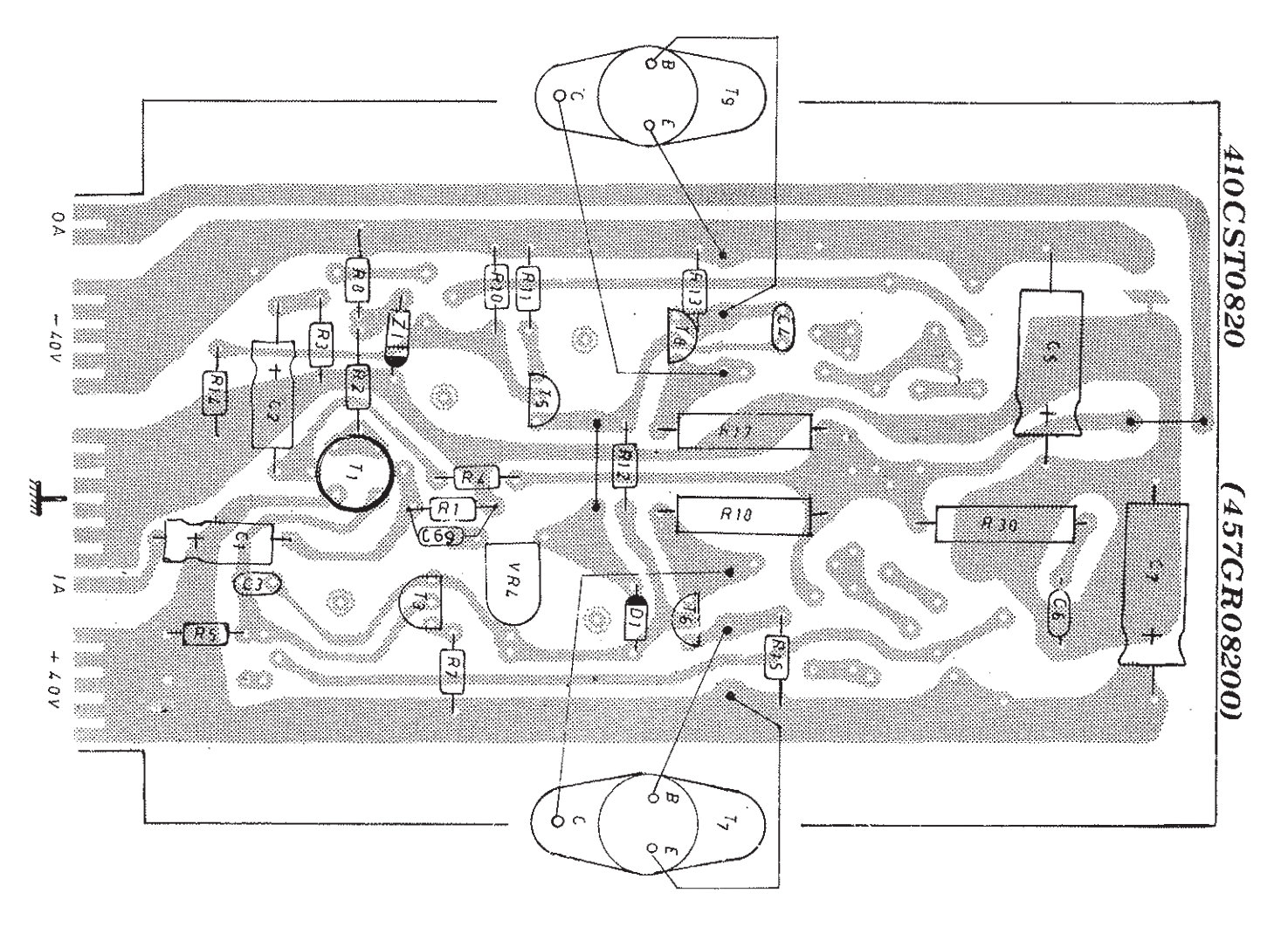

PCB

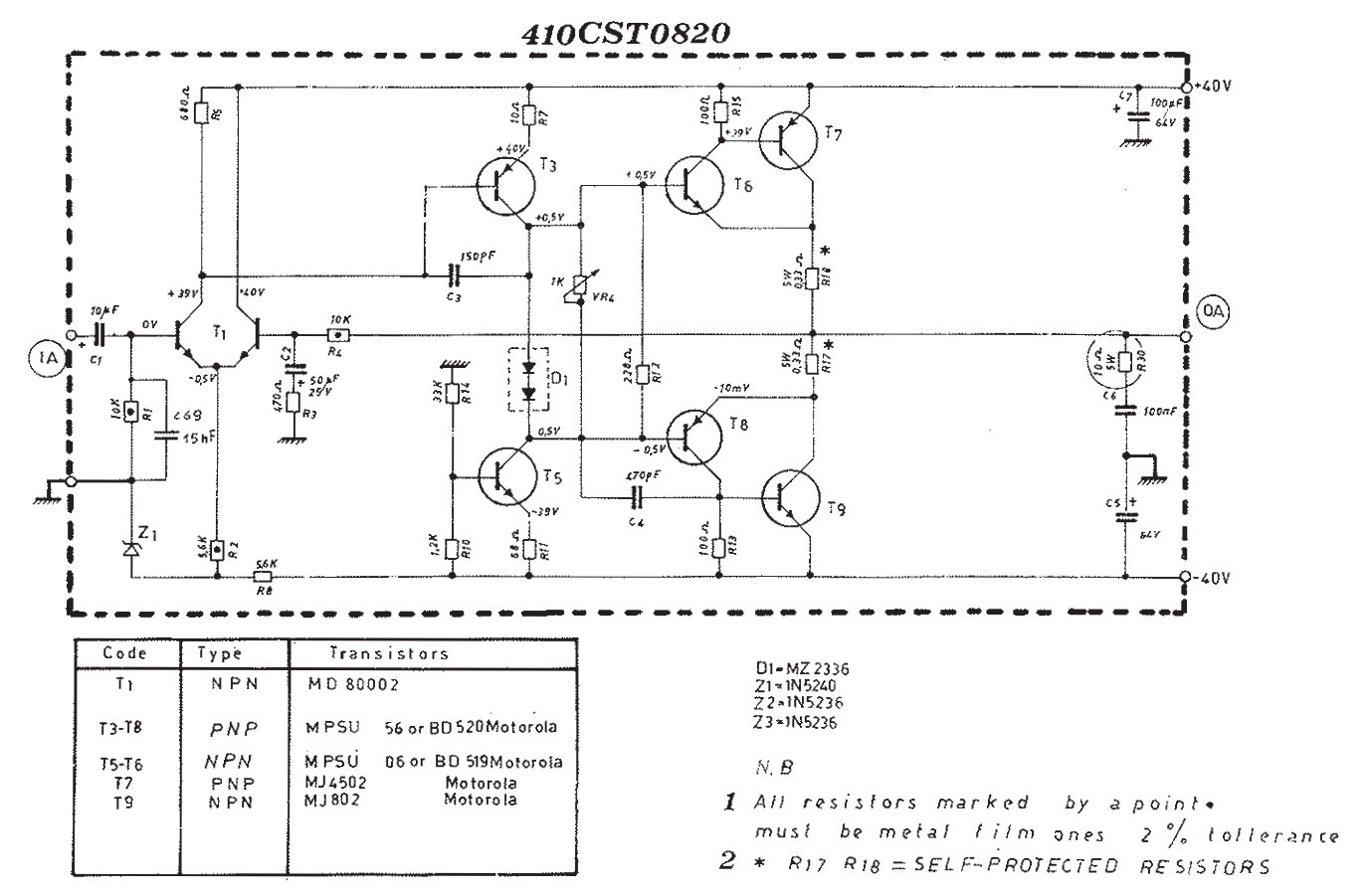

Schematic
