Elka 410CST0774

March 12, 2025

The Elka 410CST0774 is a Vibrato board.

It was used in the Elka Artist X-705 from 1977.

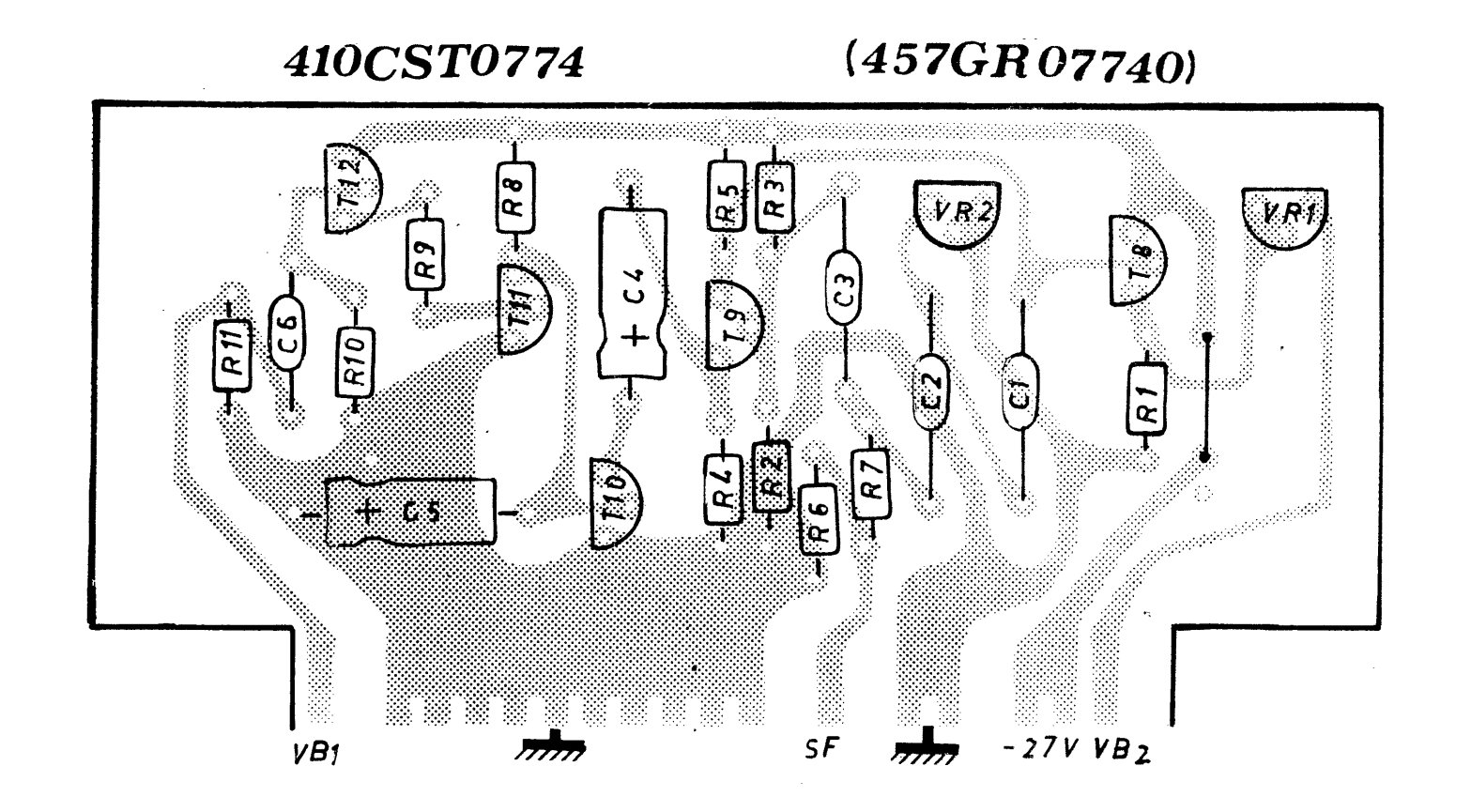

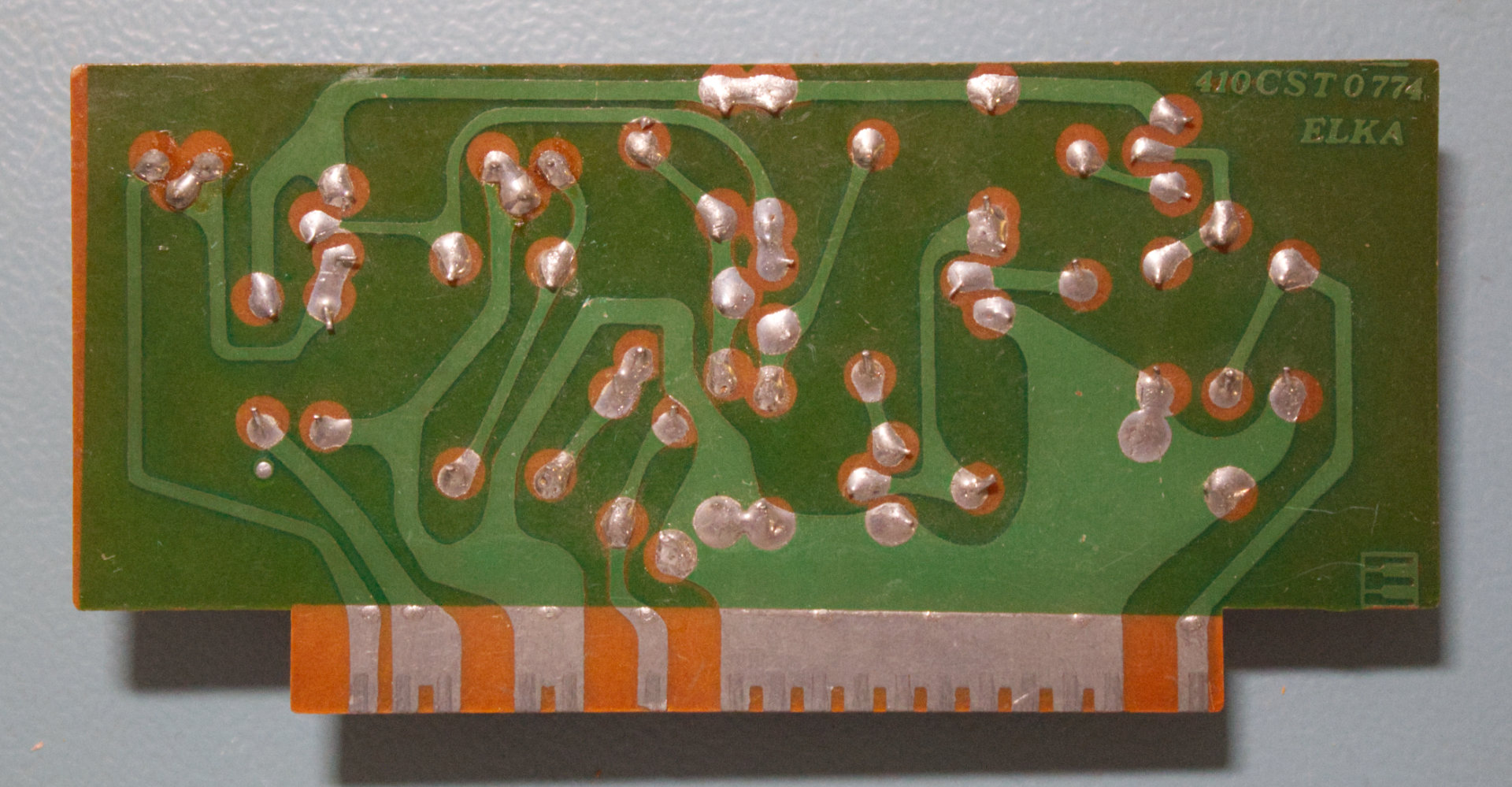

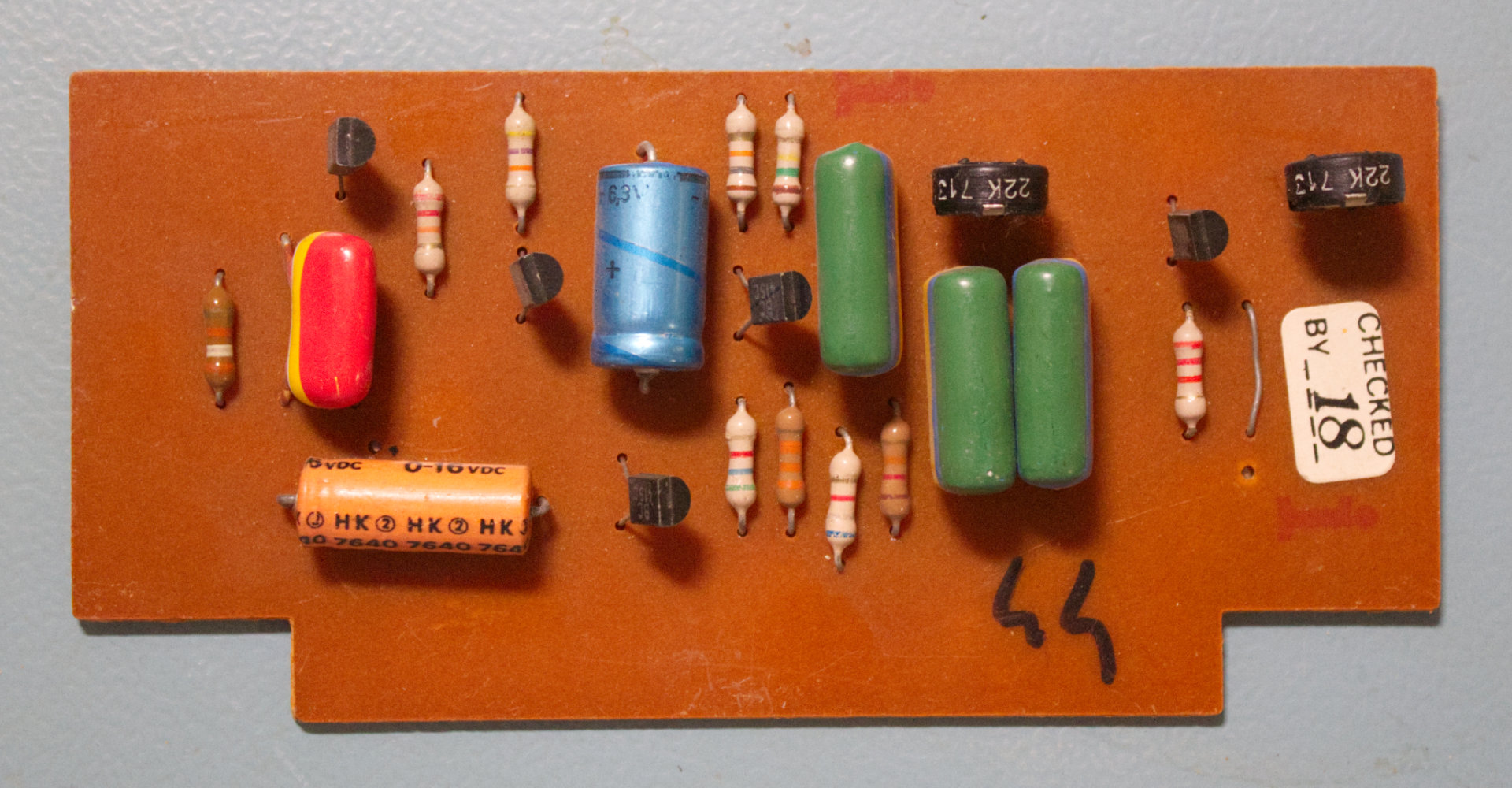

PCB

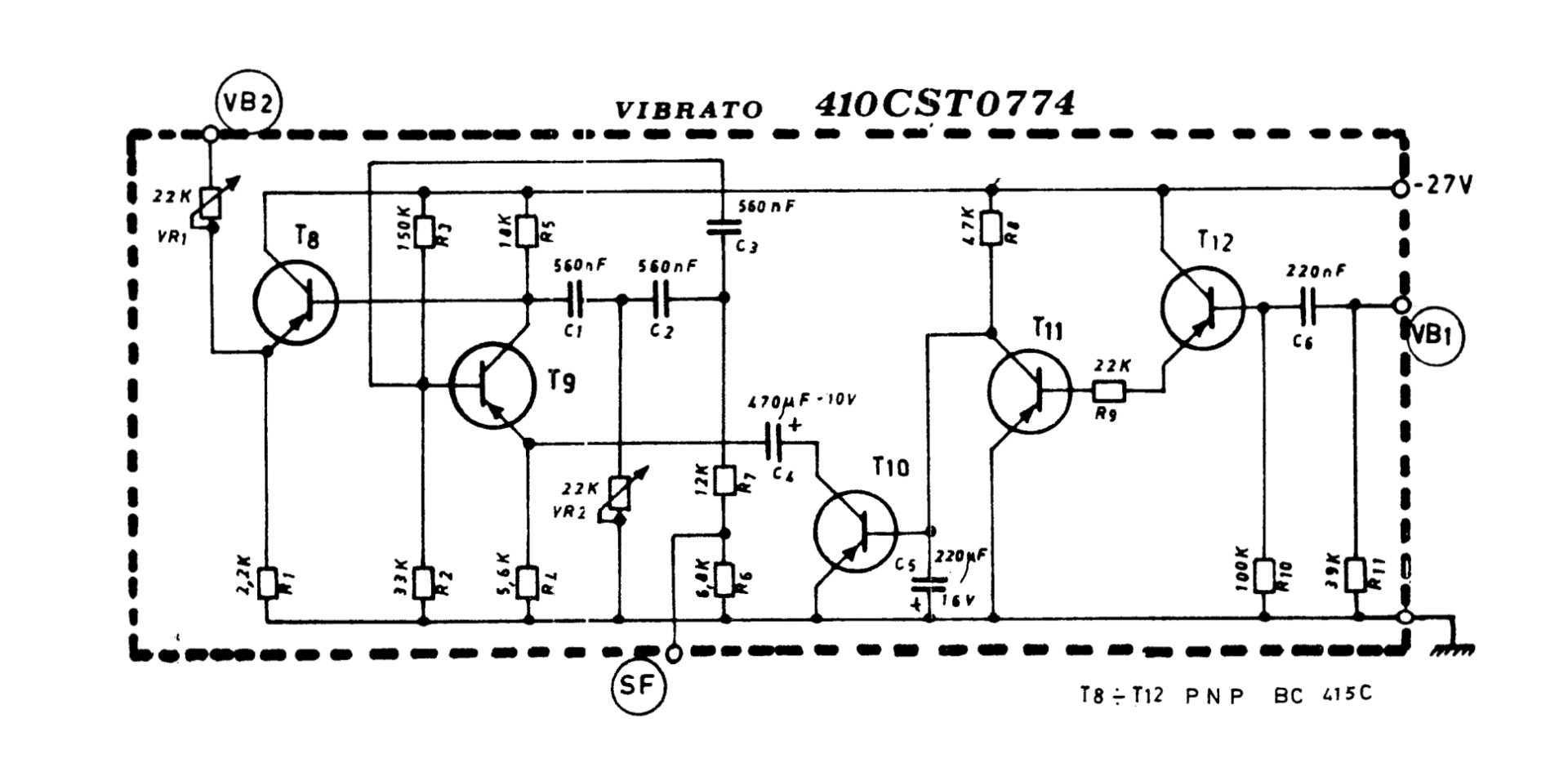

Schematic
