Elka 410CST0772

March 22, 2025

The Elka 410CST0772 is a Low Frequency Oscillator board.

It was used in the Elka Artist 707 from 1977.

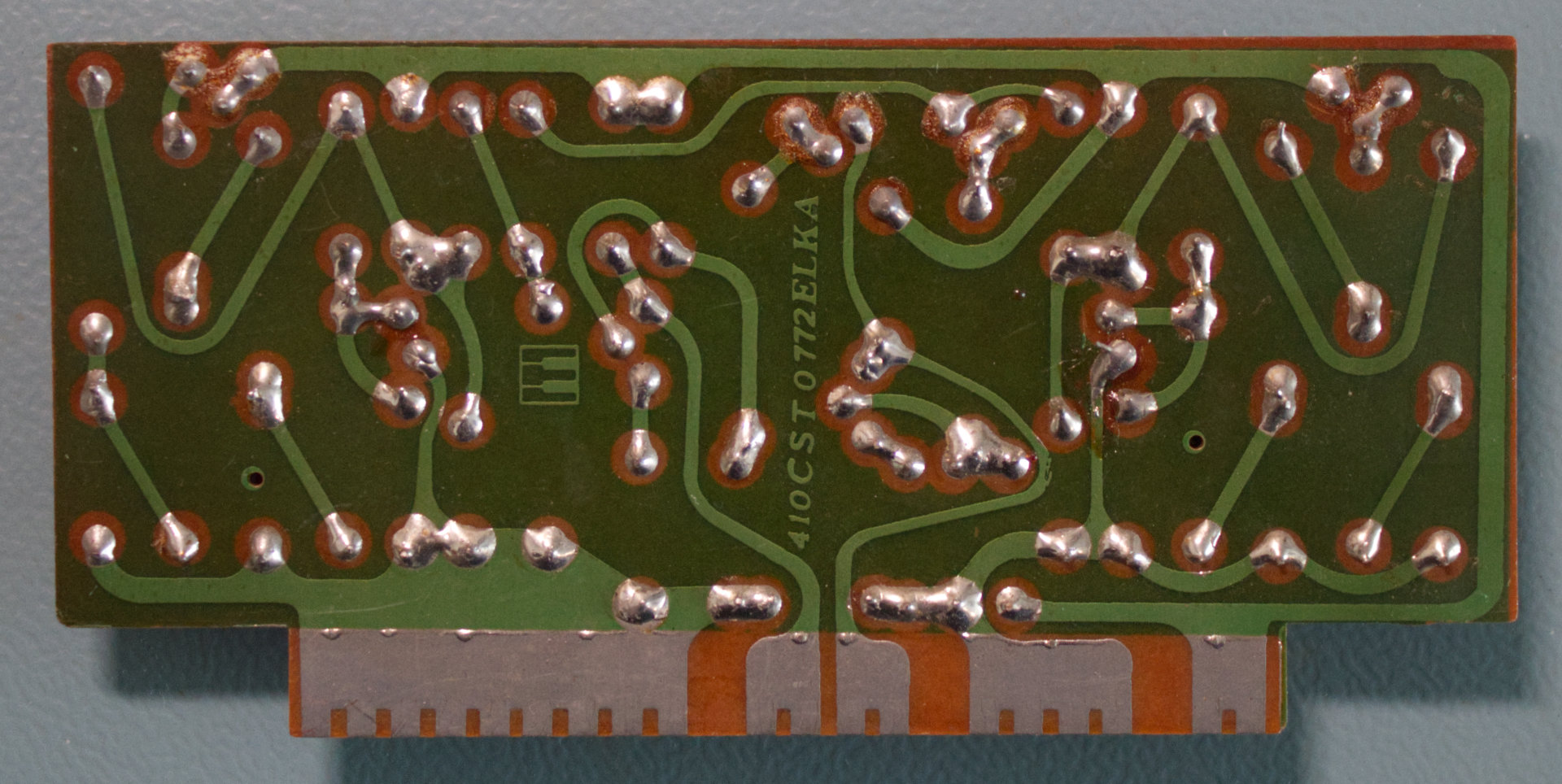

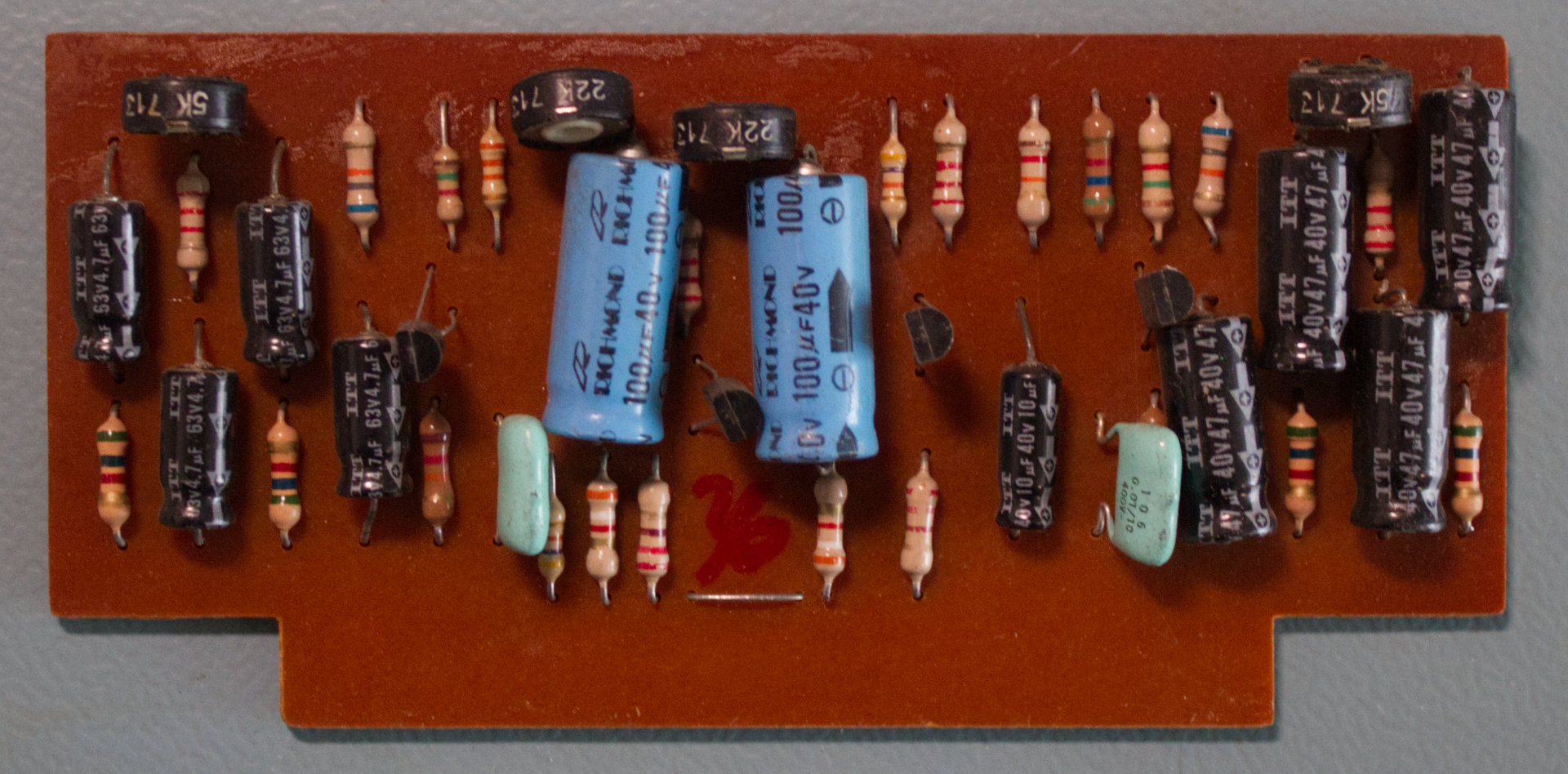

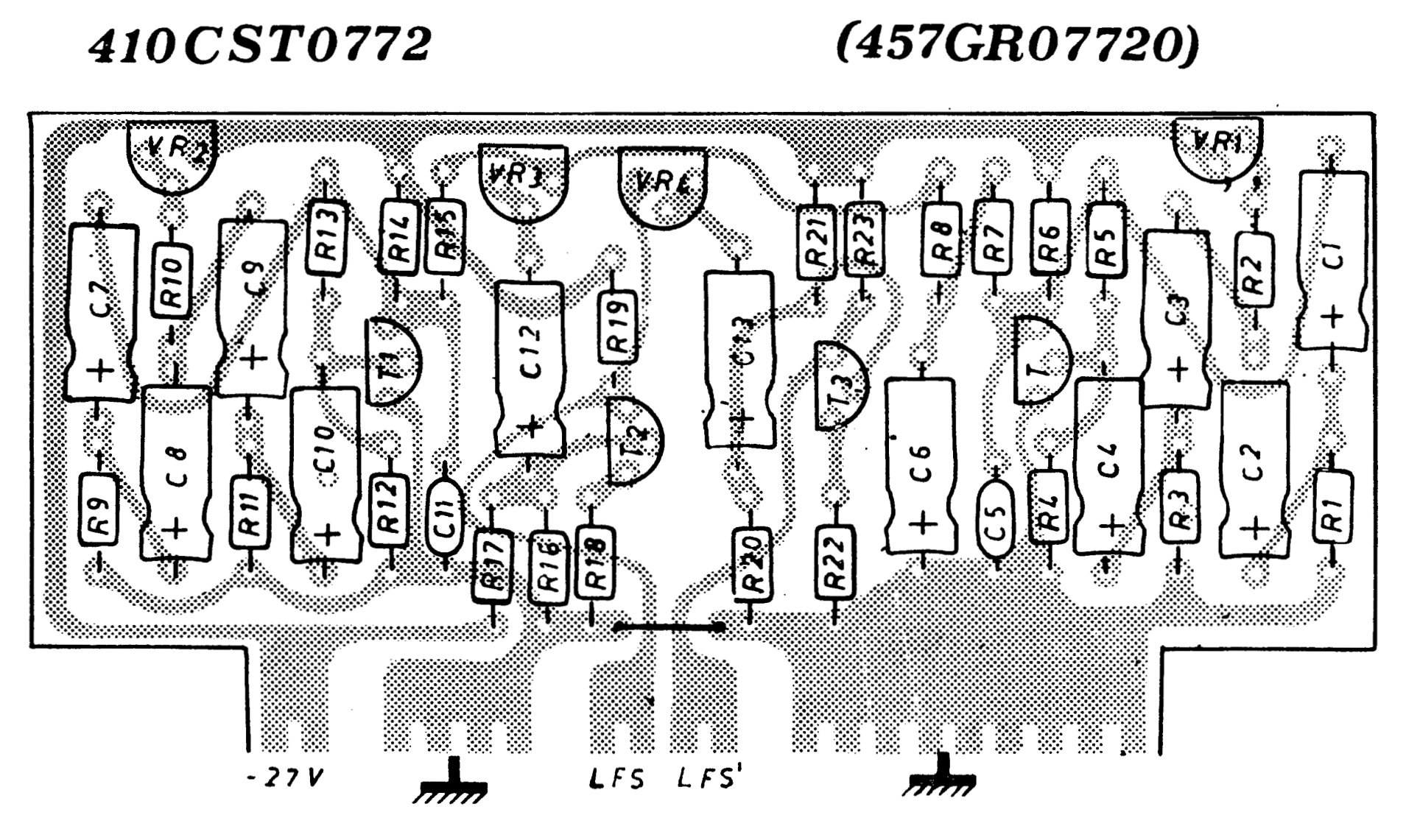

PCB

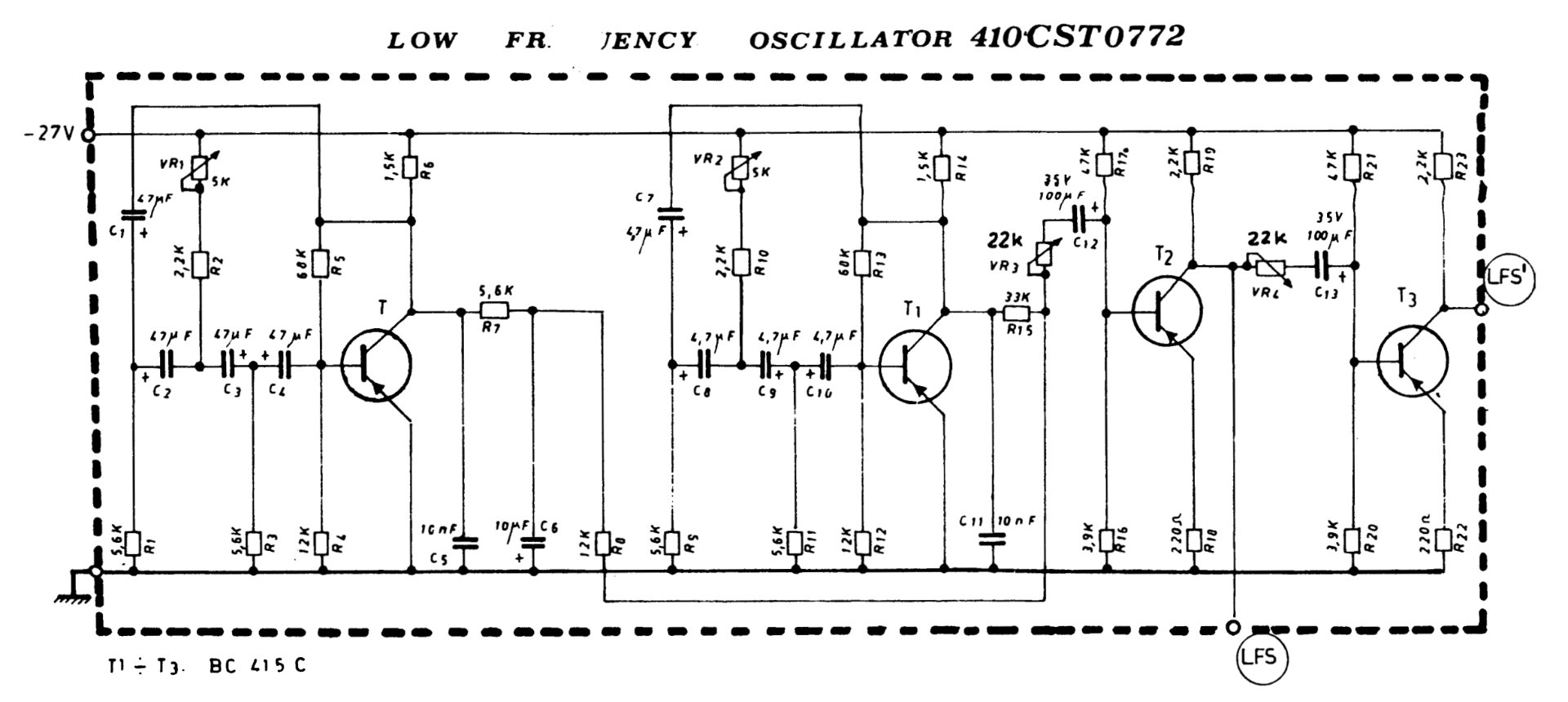

Schematic
