Christian-Marty.ch´s Electric Things

Elka 410CST0742

March 20, 2025

The Elka 410CST0742 is part of the Rhythm Unit.

It was used in the Elka X705 from 1977.

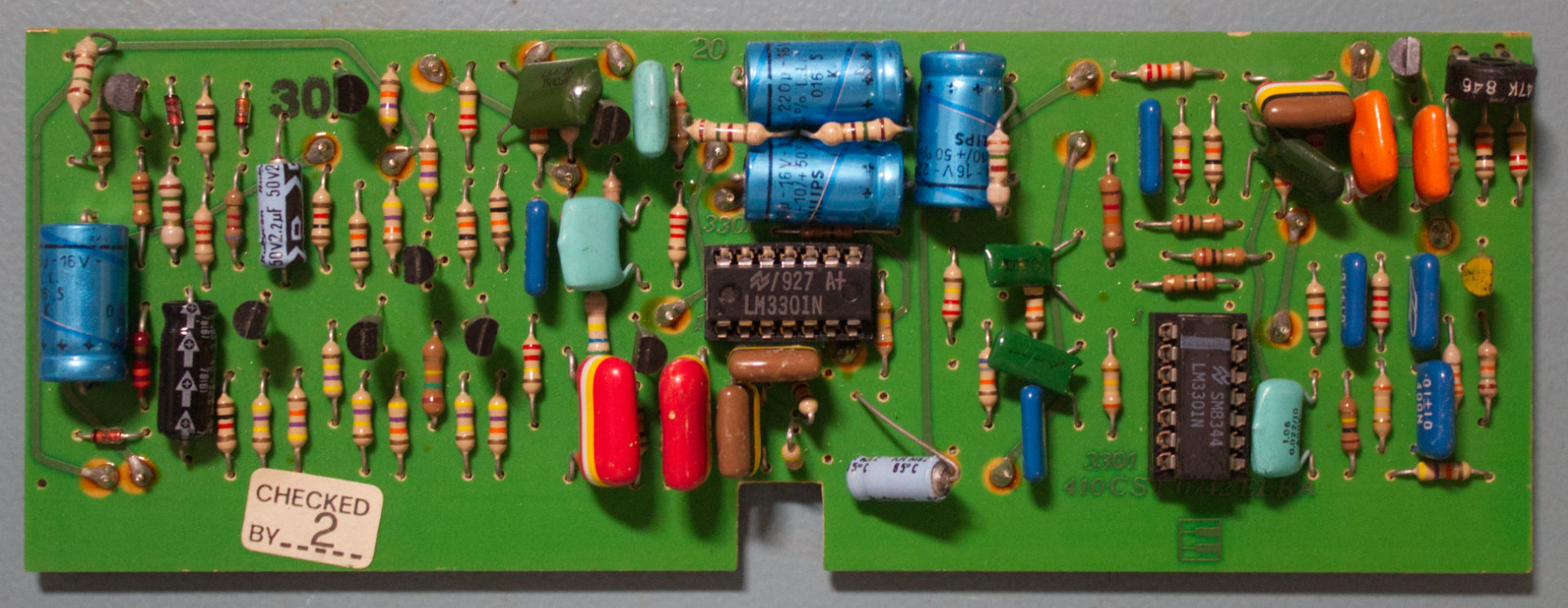

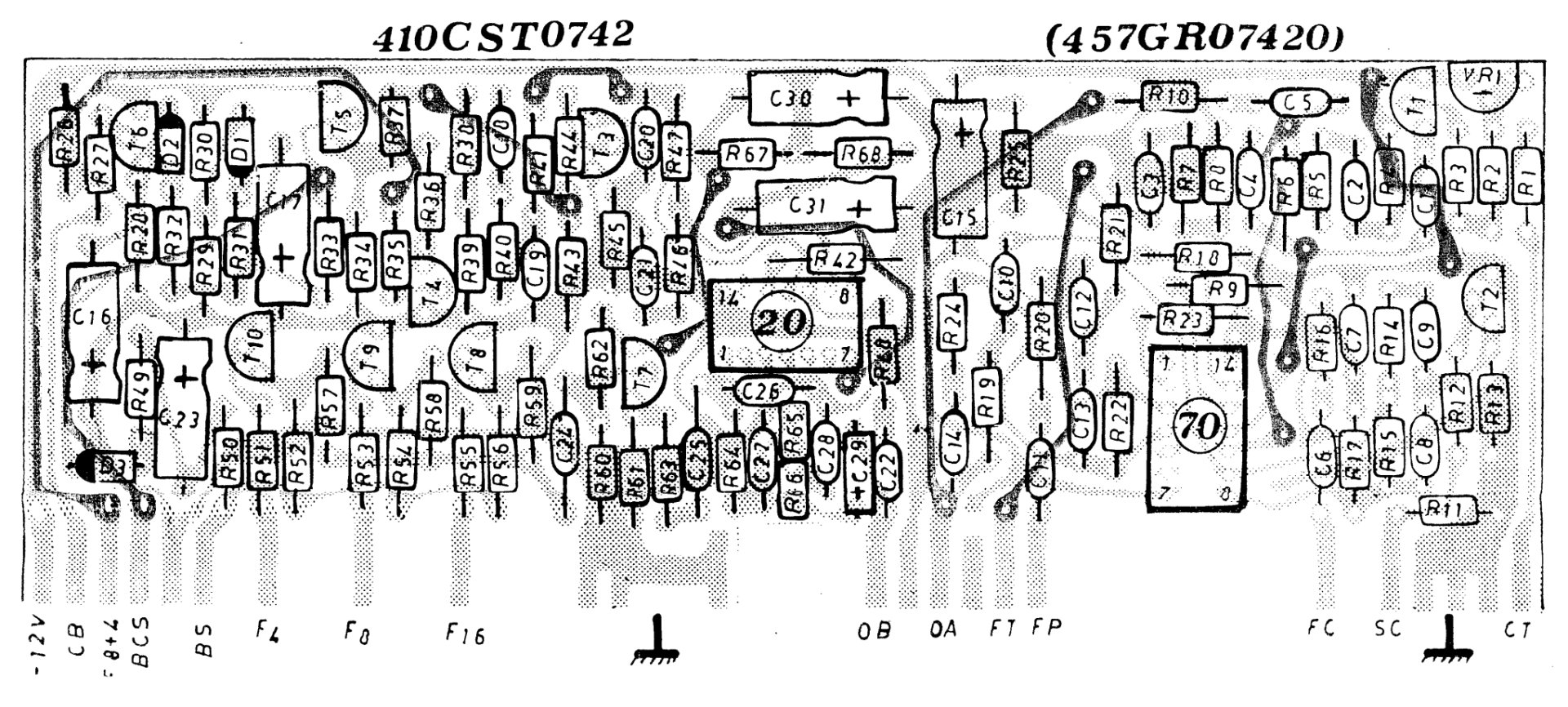

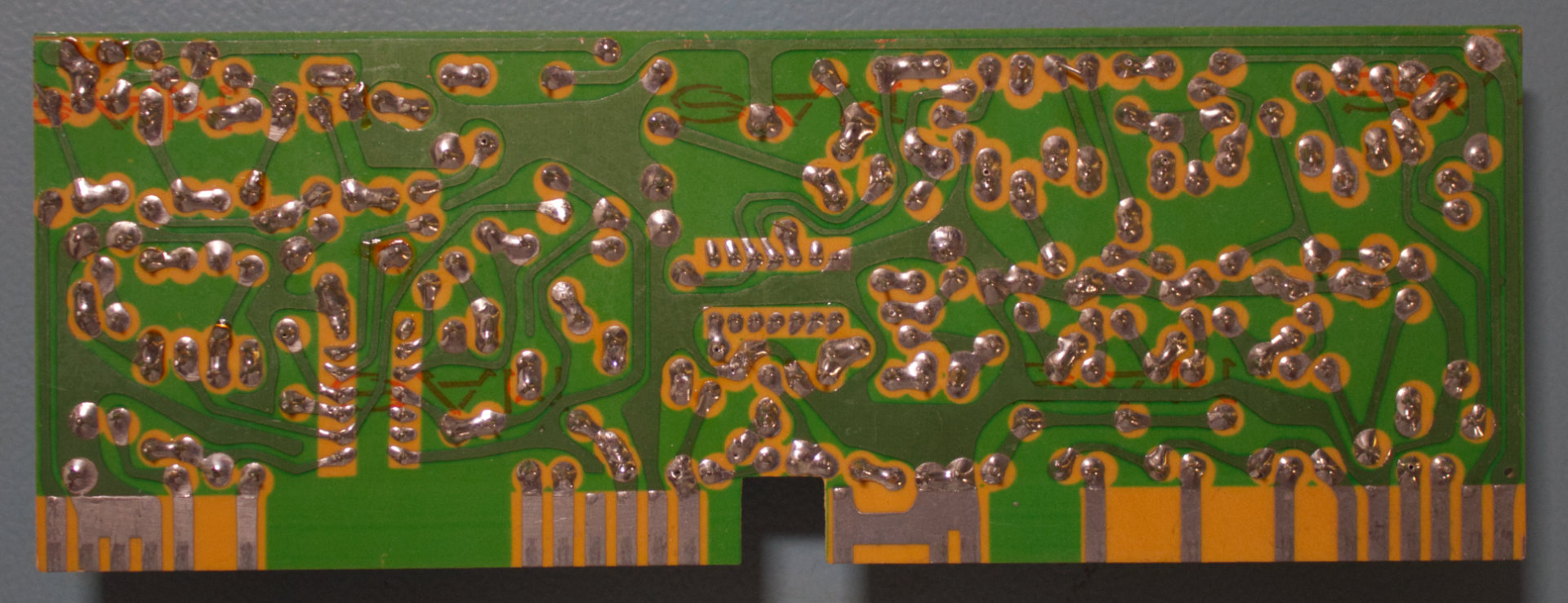

PCB

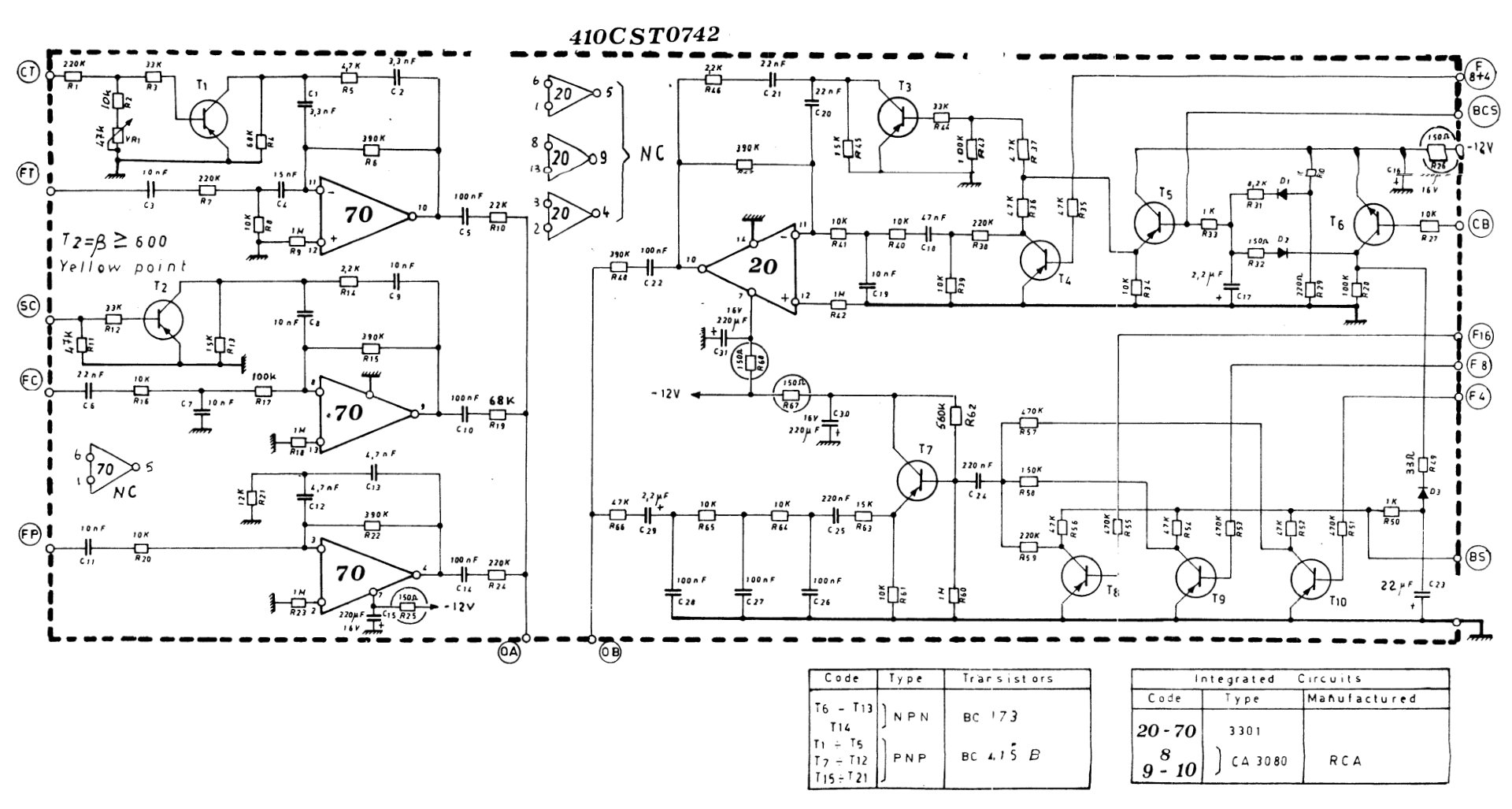

Schematic
