Elka 410CST0738

March 18, 2025

The Elka 410CST0738 is part of the Rhythm Unit.

It was used in the Elka Artist 707 from 1977.

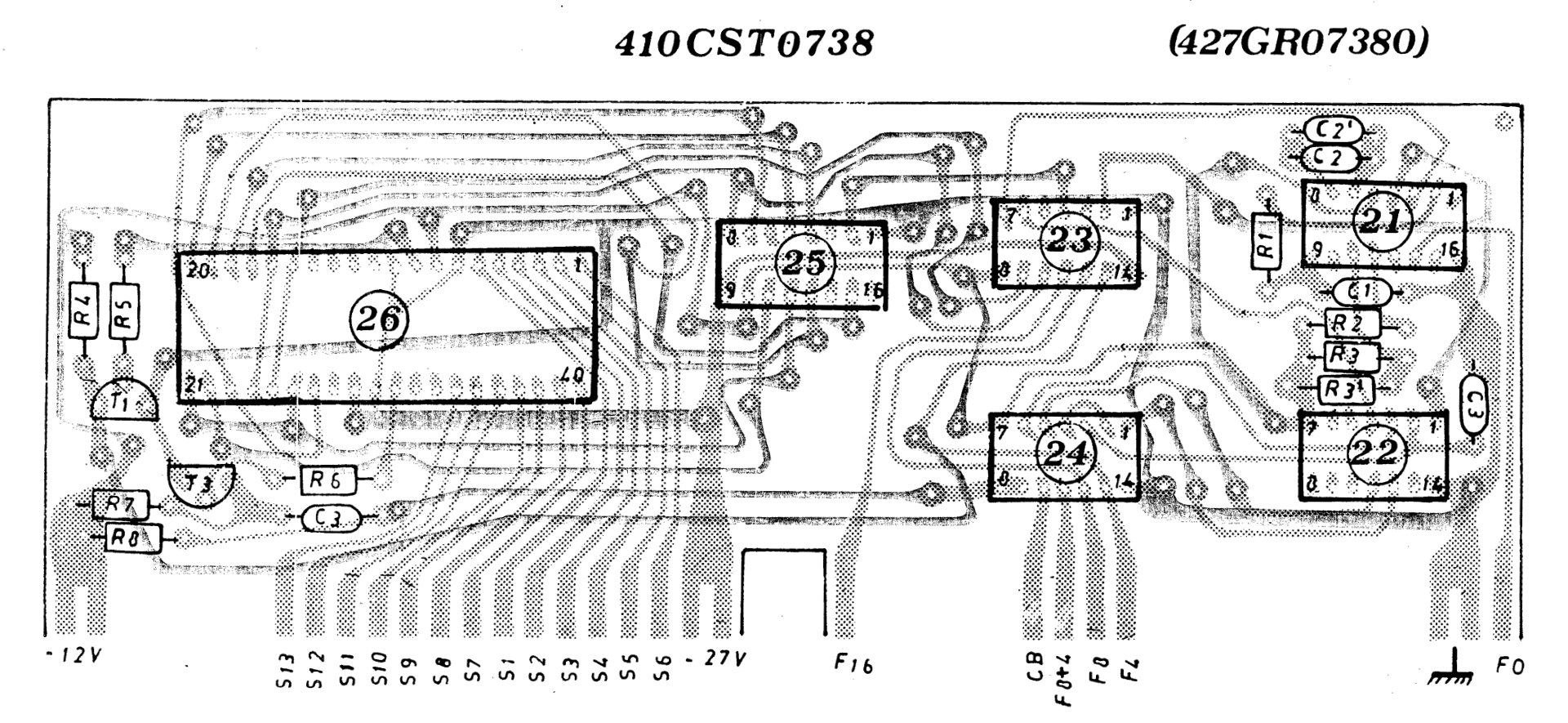

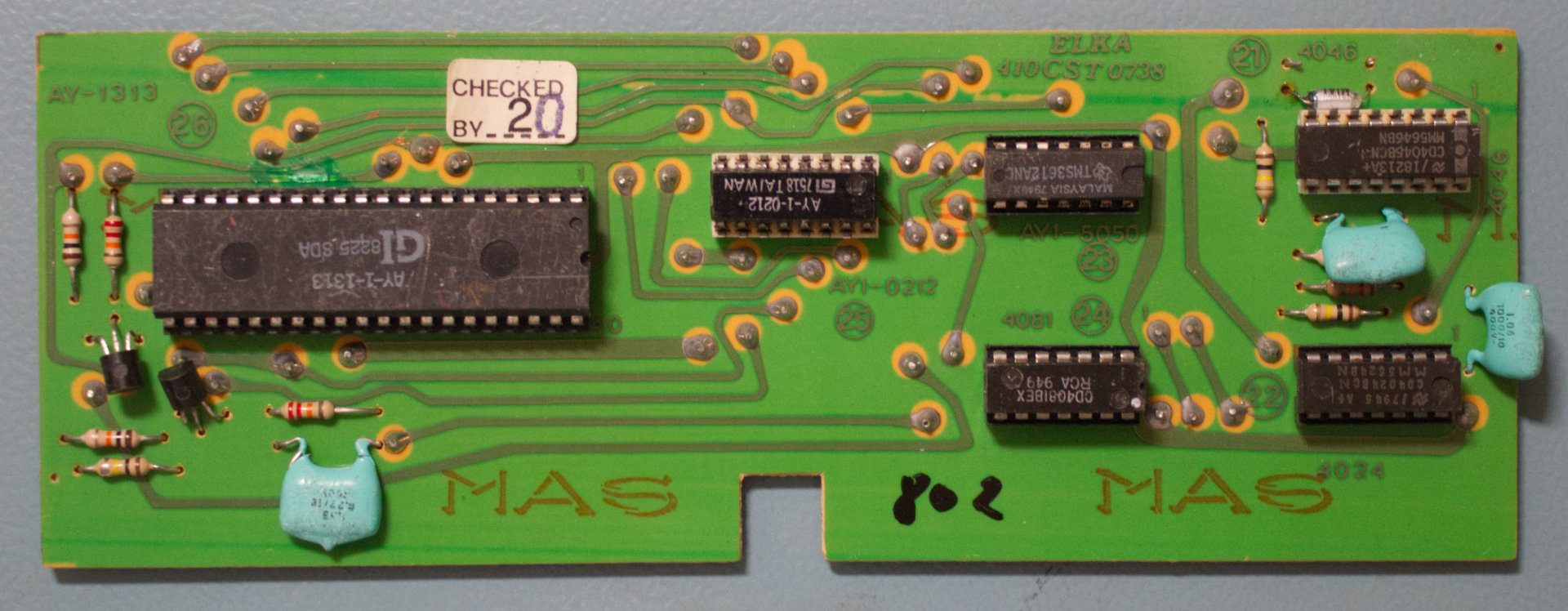

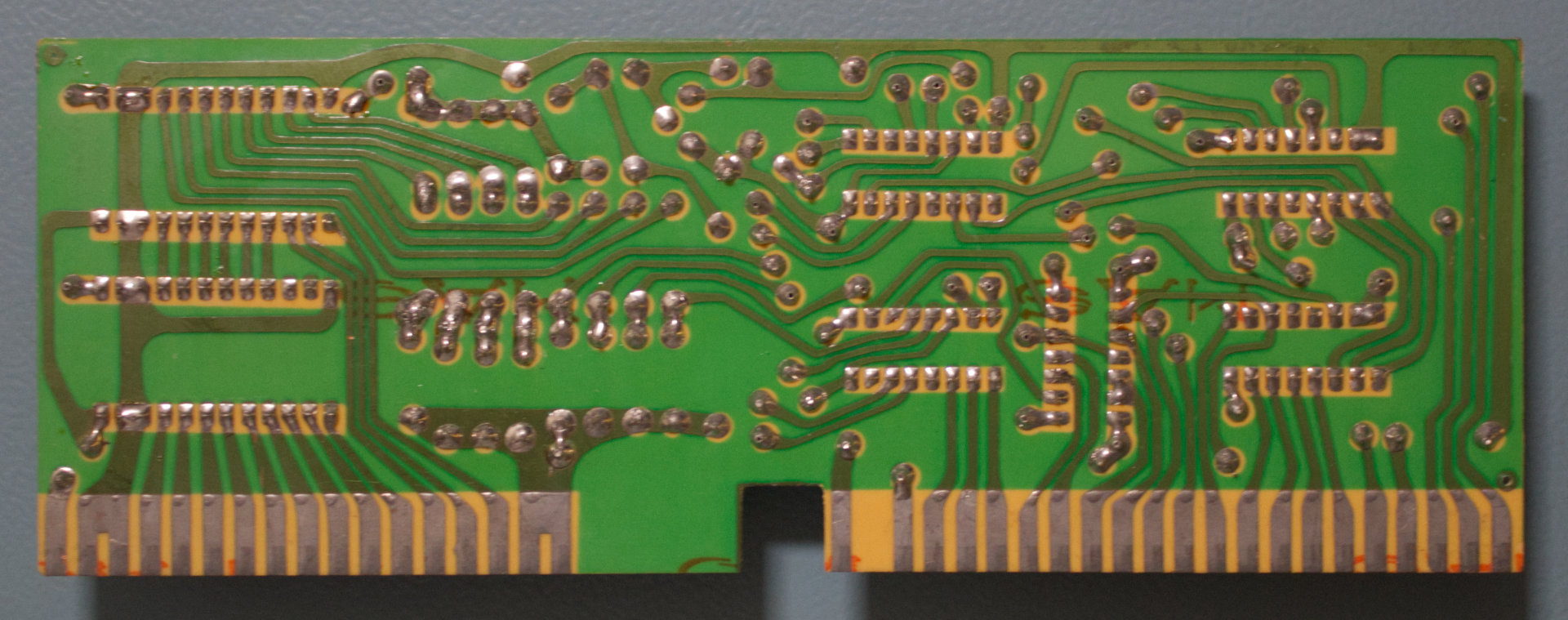

PCB

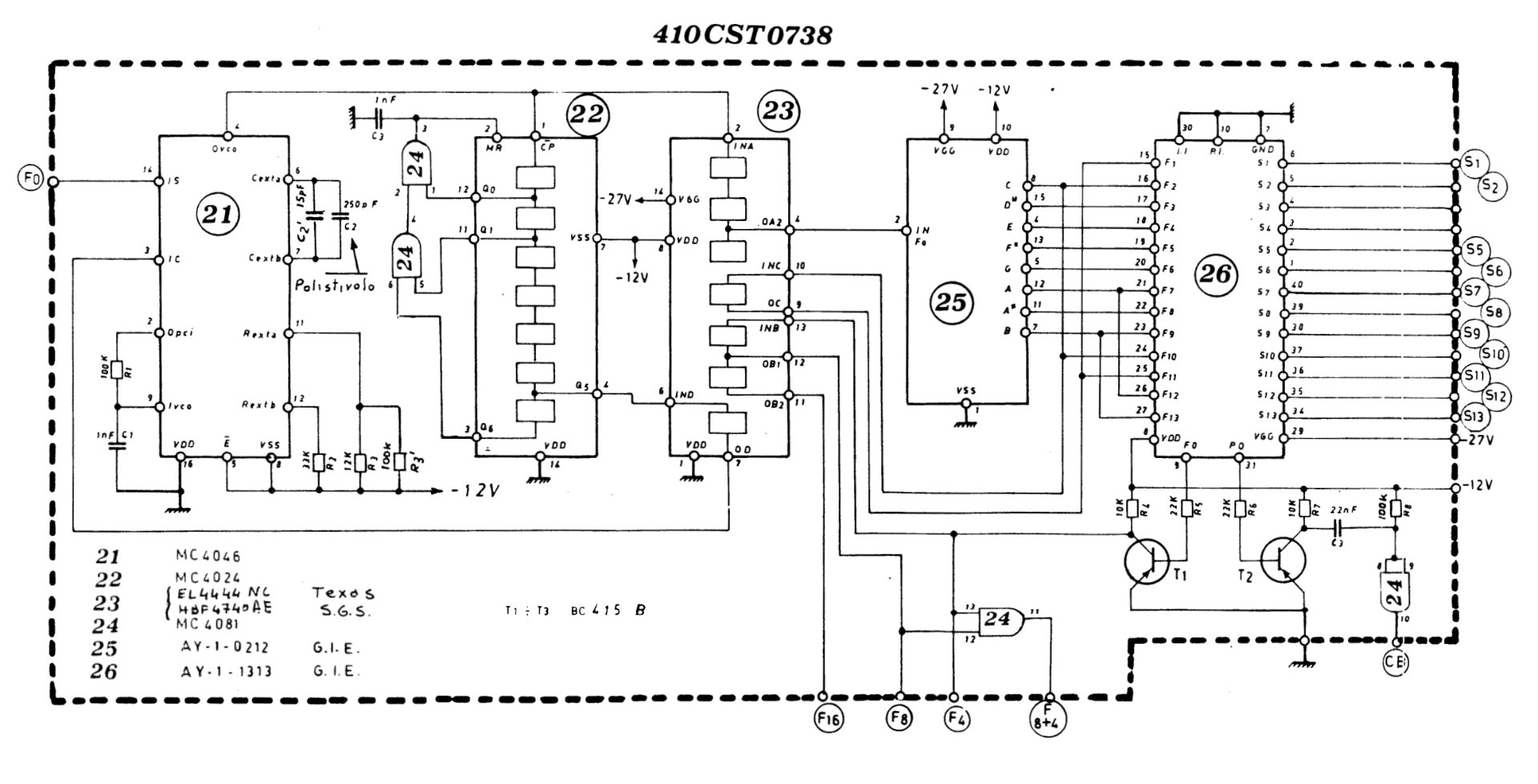

Schematic
