Elka 410CST0727

March 12, 2025

The Elka 410CST0727 is a Timbre Control board.

It was used in the Elka Artist 707 from 1977.

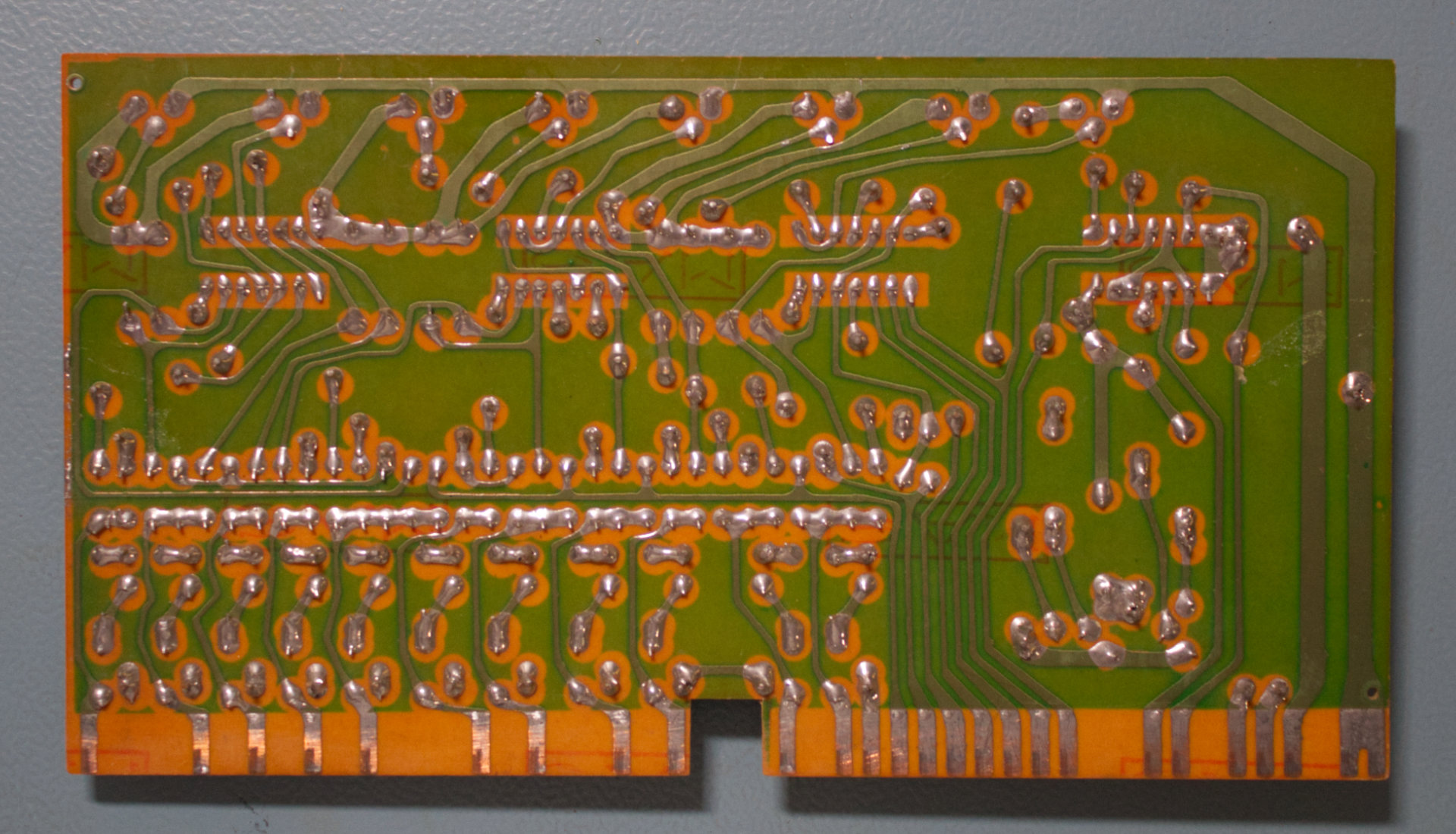

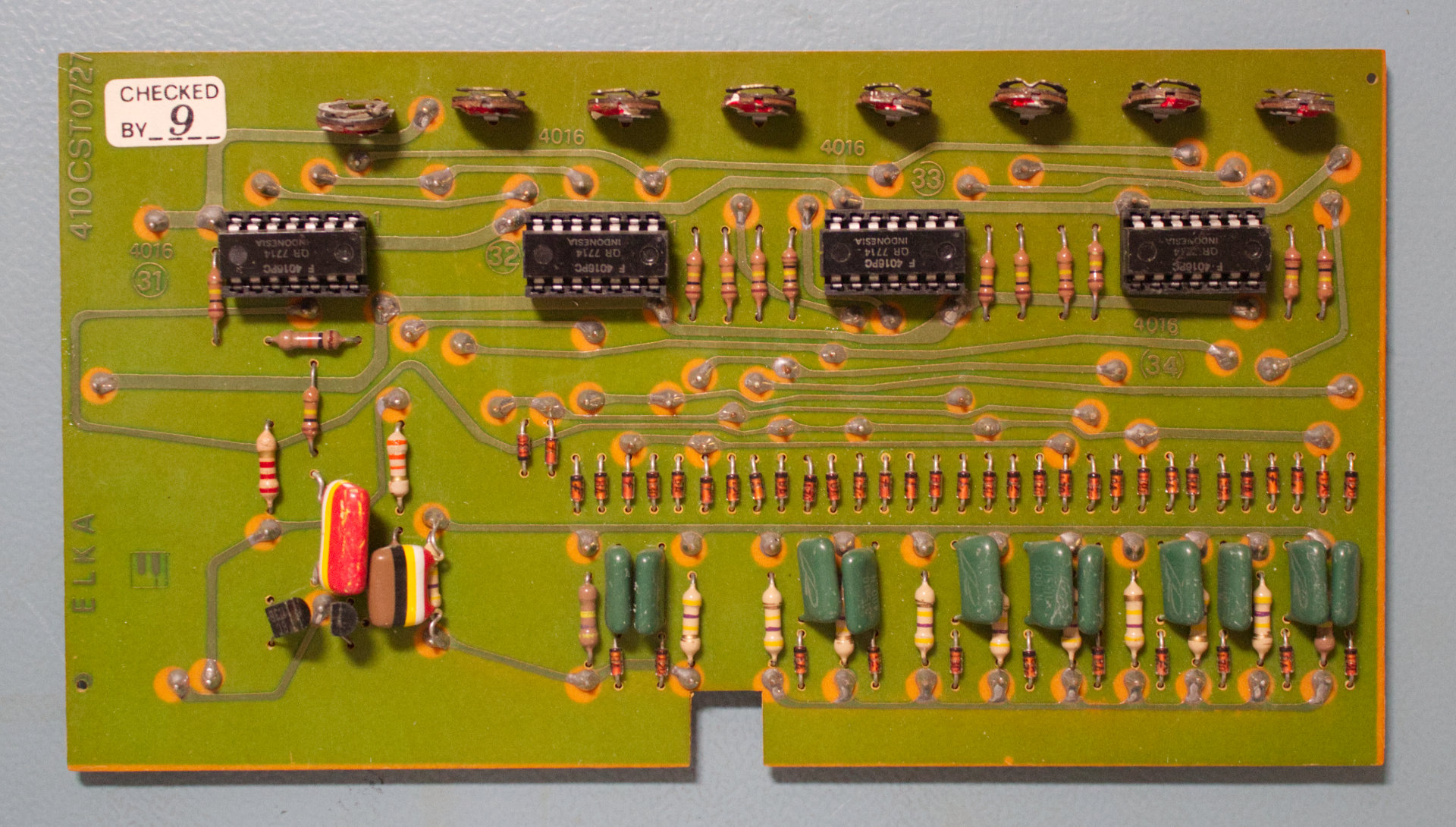

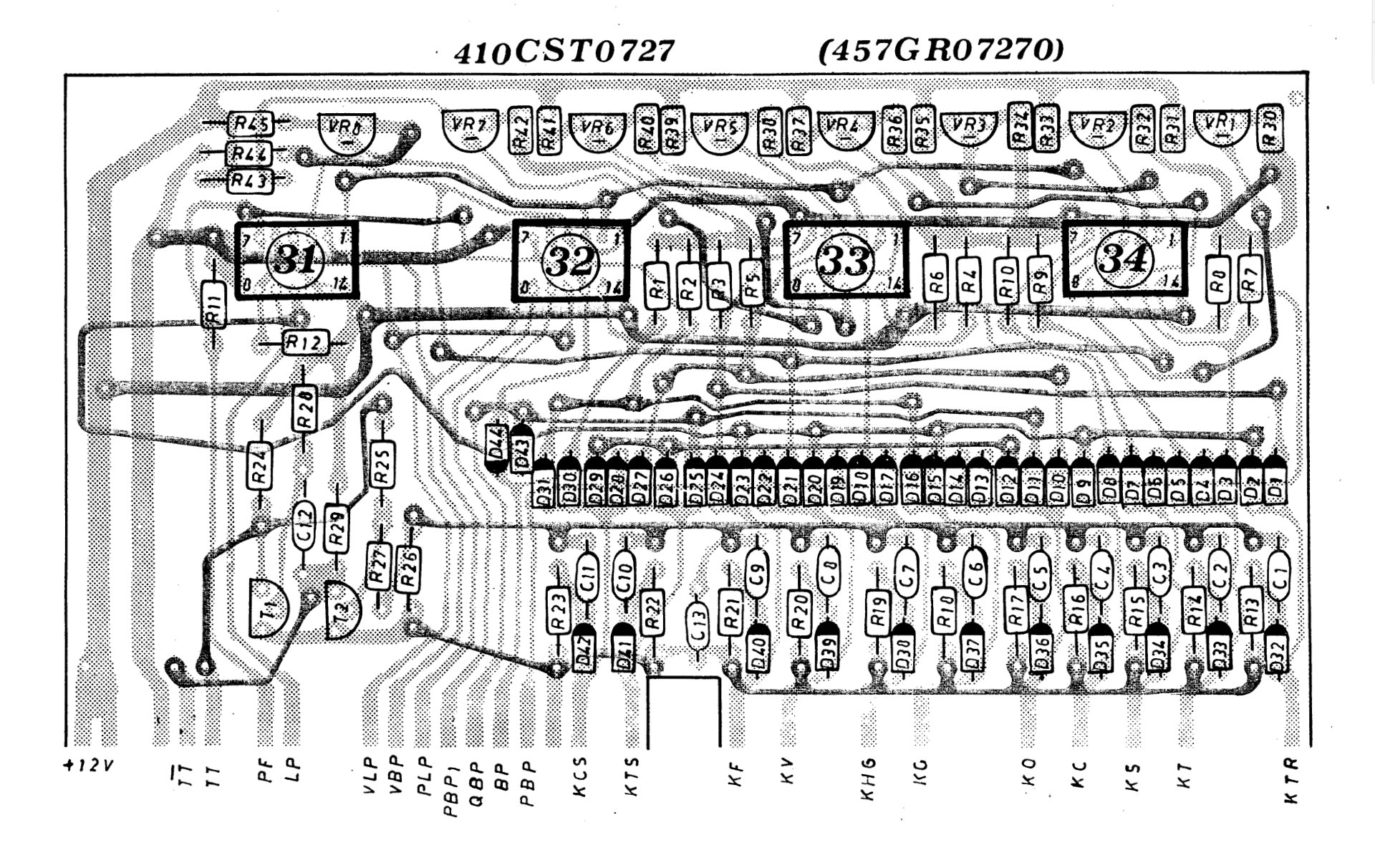

PCB

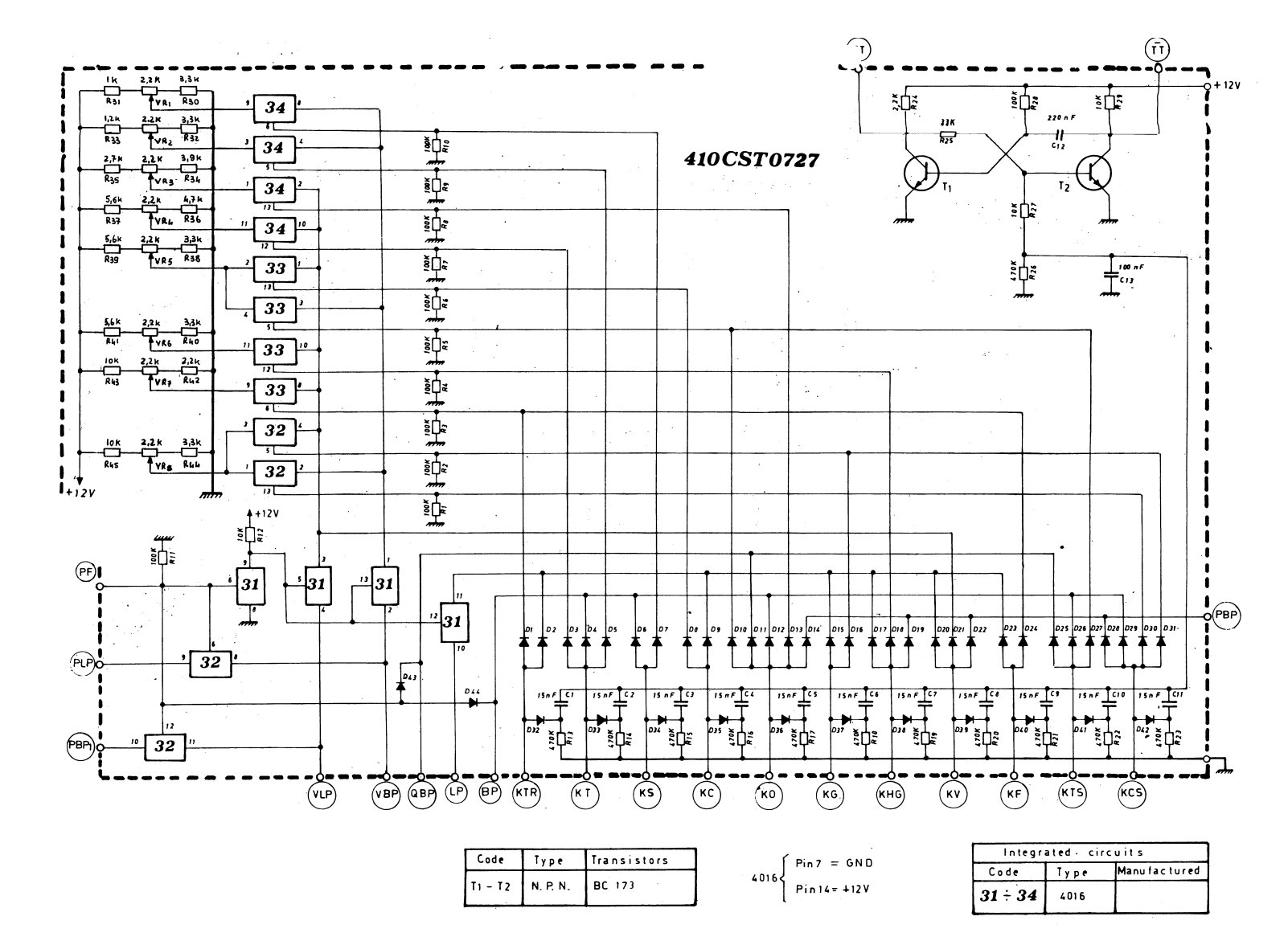

Schematic
