Elka 410CST0726

March 17, 2025

The Elka 410CST0726 is a VCA and VCF Control board.

It was used in the Elka Artist 707 from 1977.

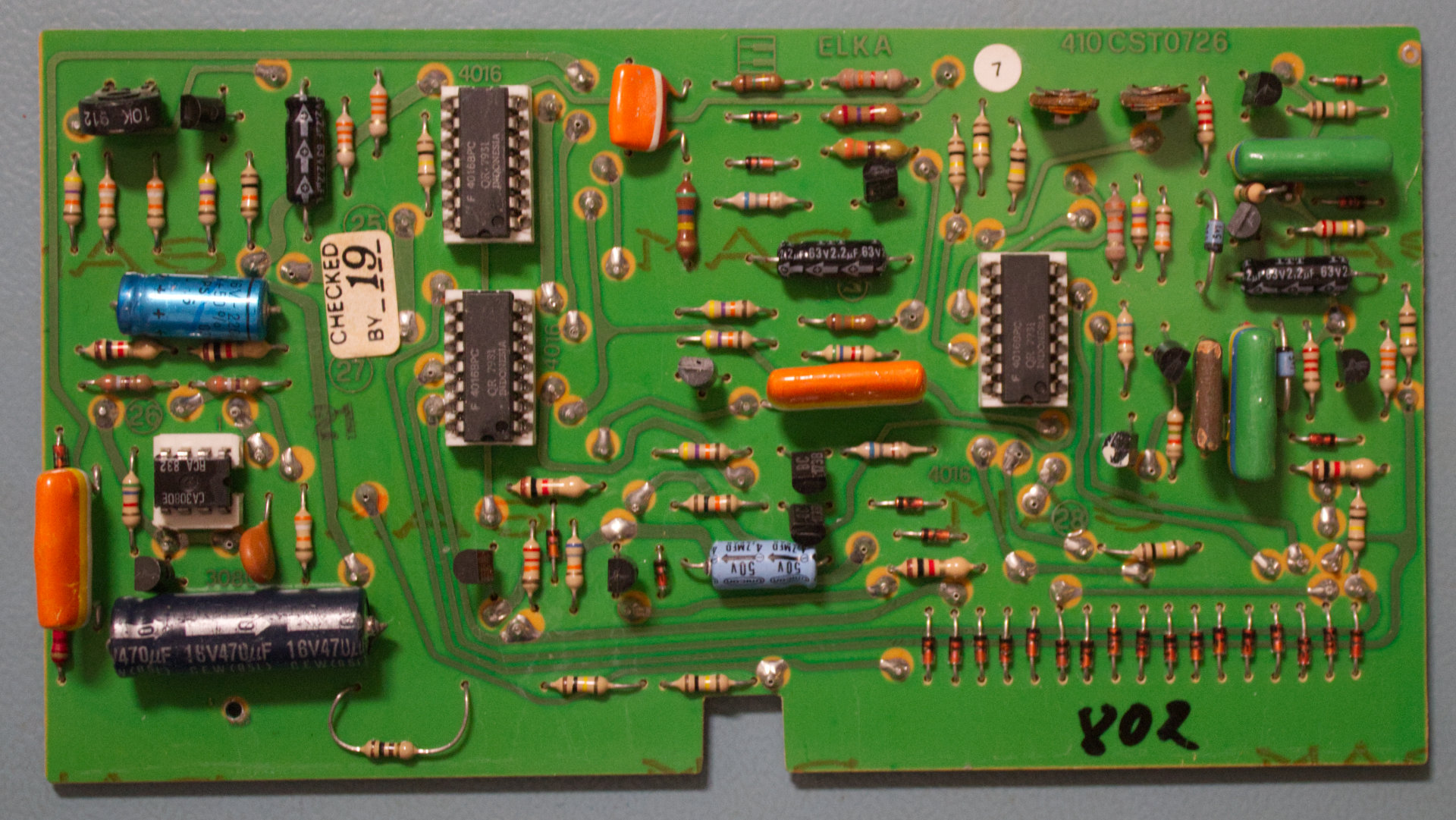

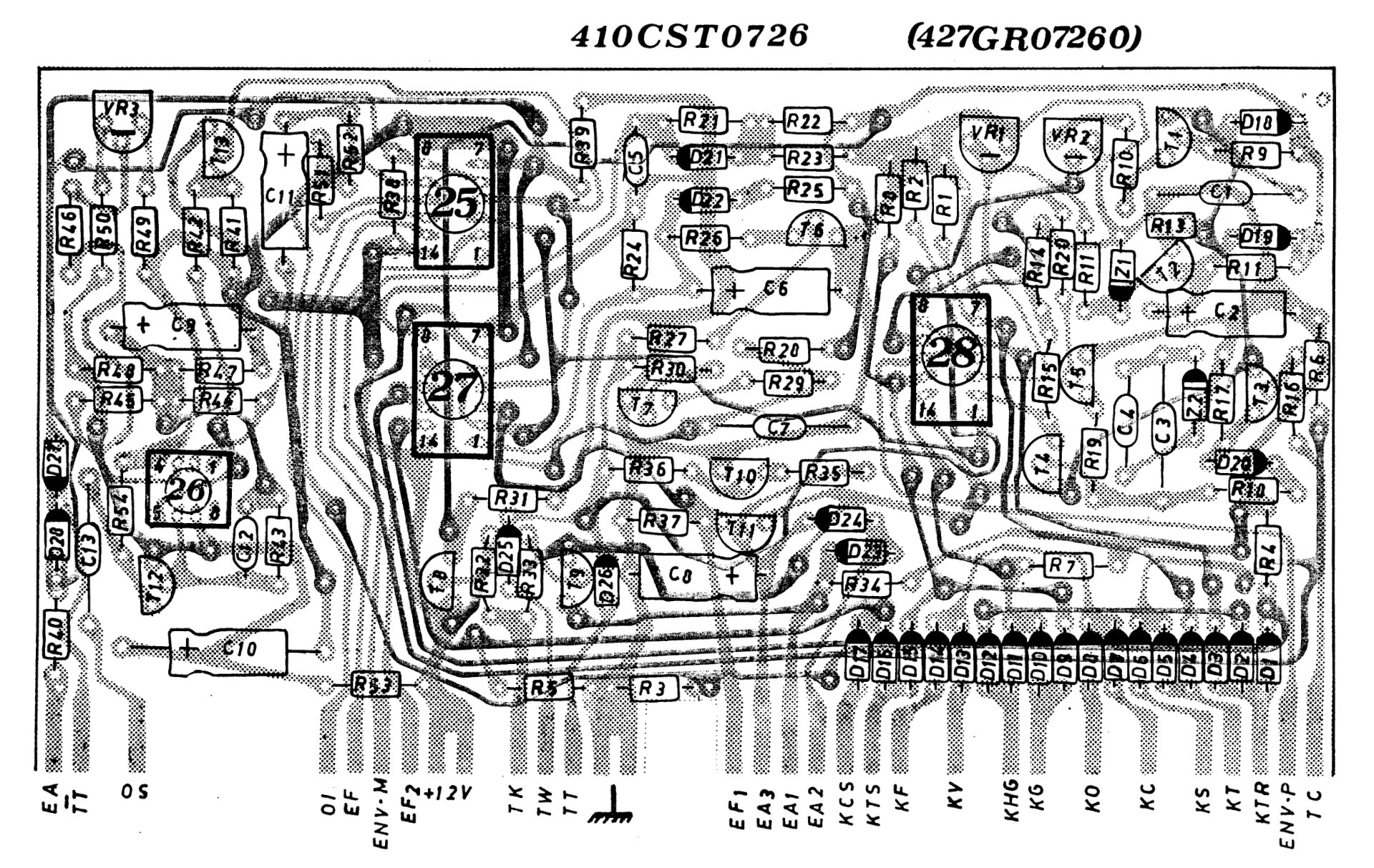

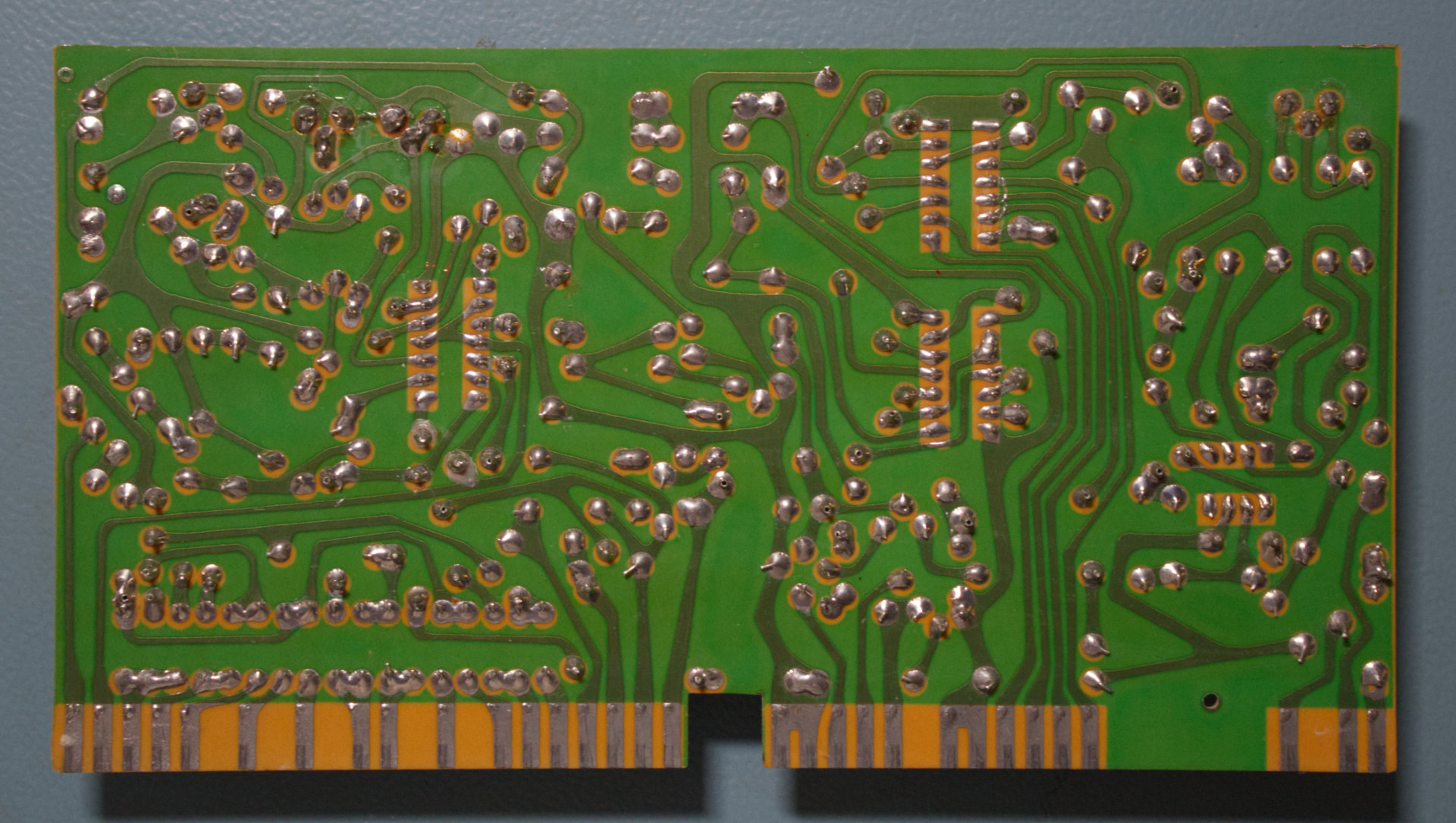

PCB

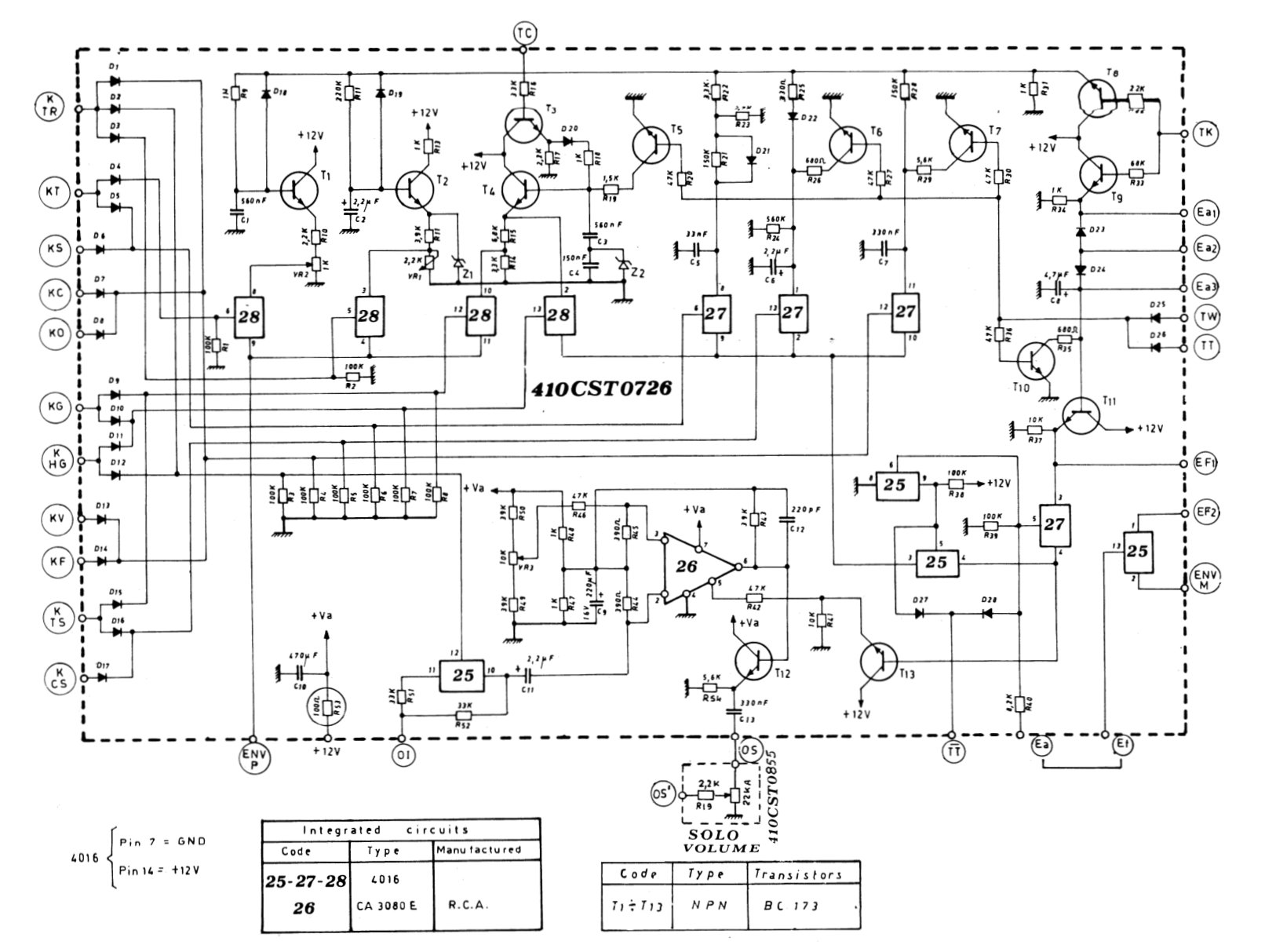

Schematic
