Elka 410CST0725

March 16, 2025

The Elka 410CST0725 is a vibrato and pitch bend circuit board.

It was used in the Elka Artist 707 from 1977.

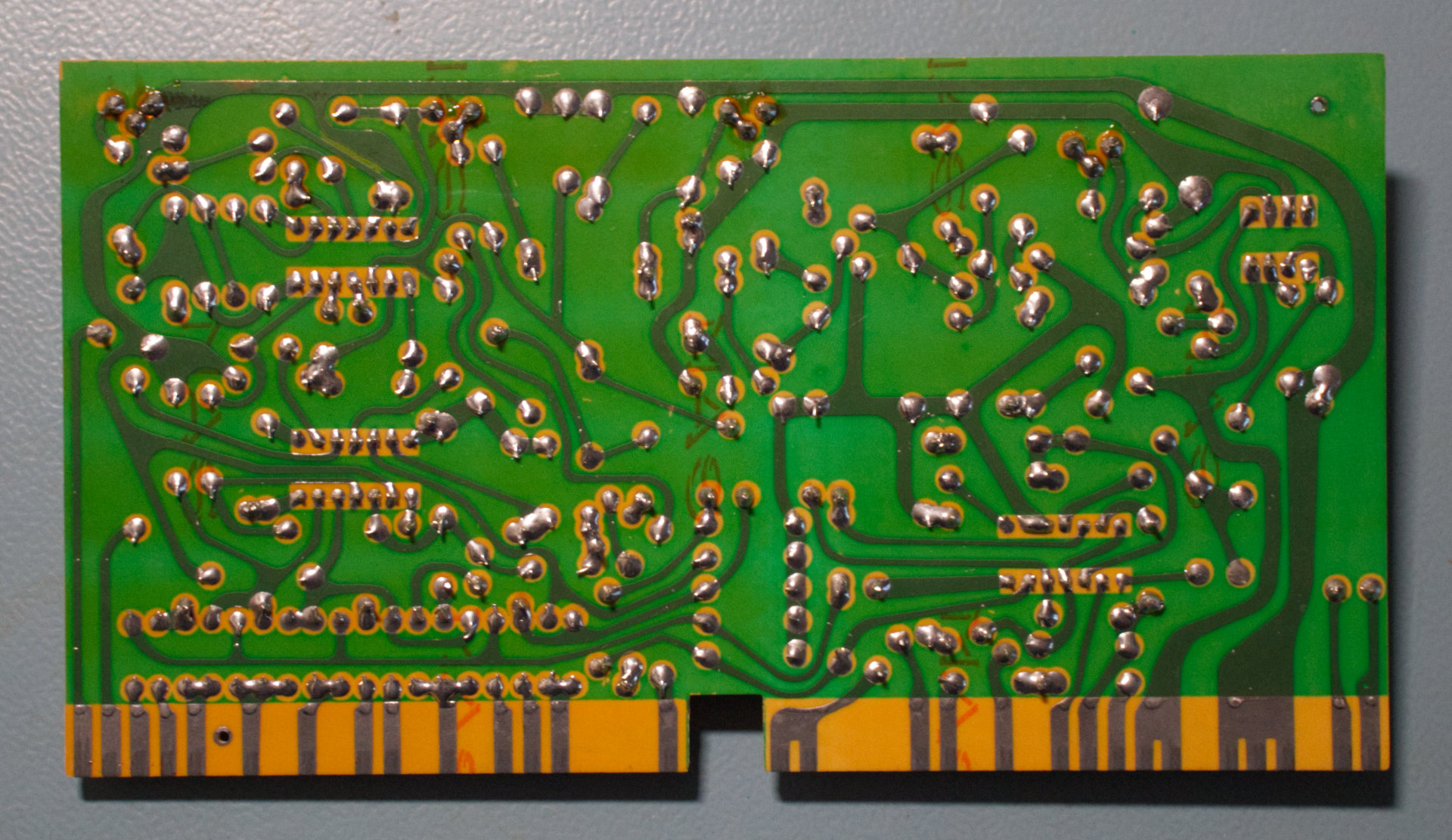

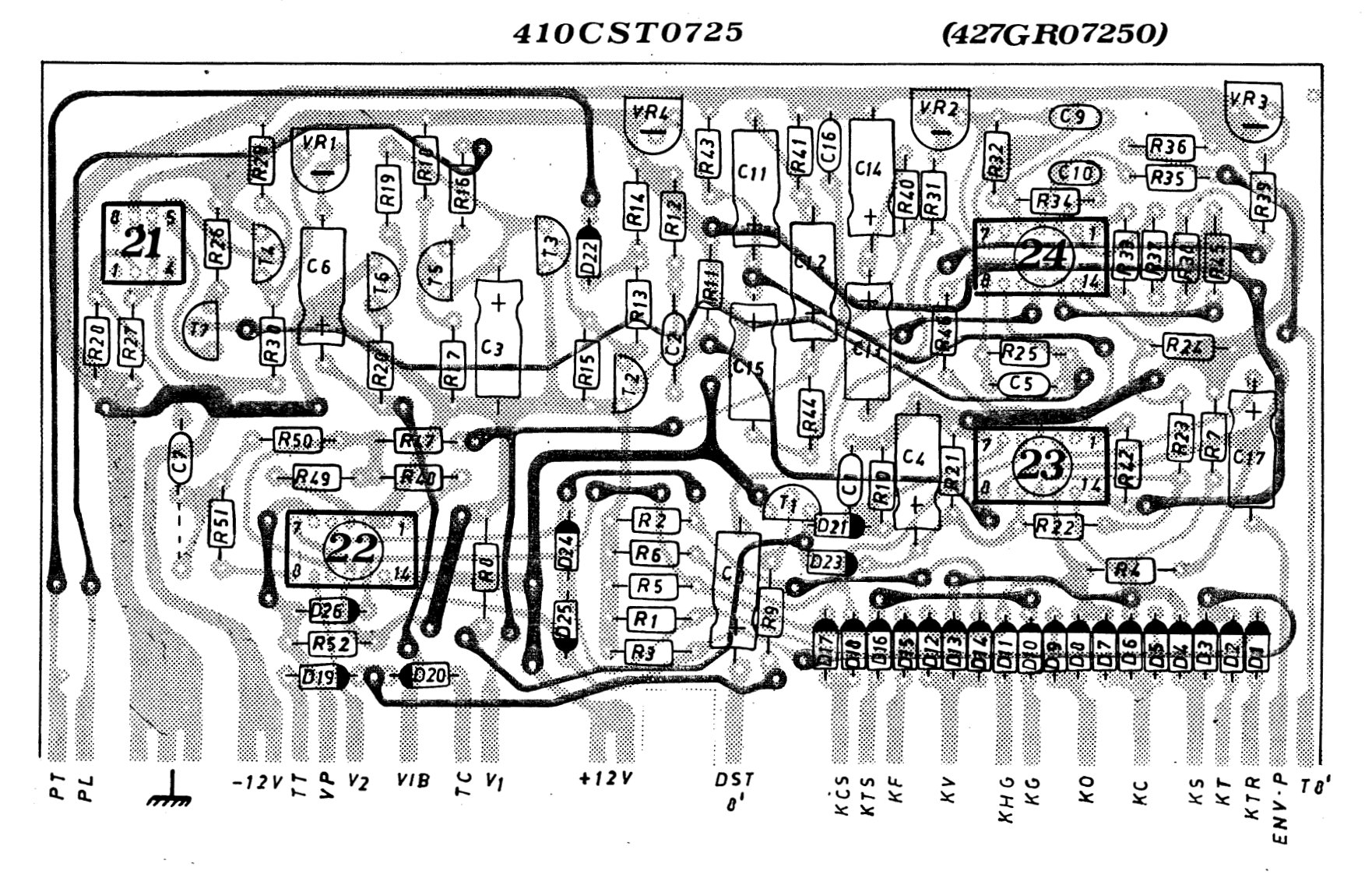

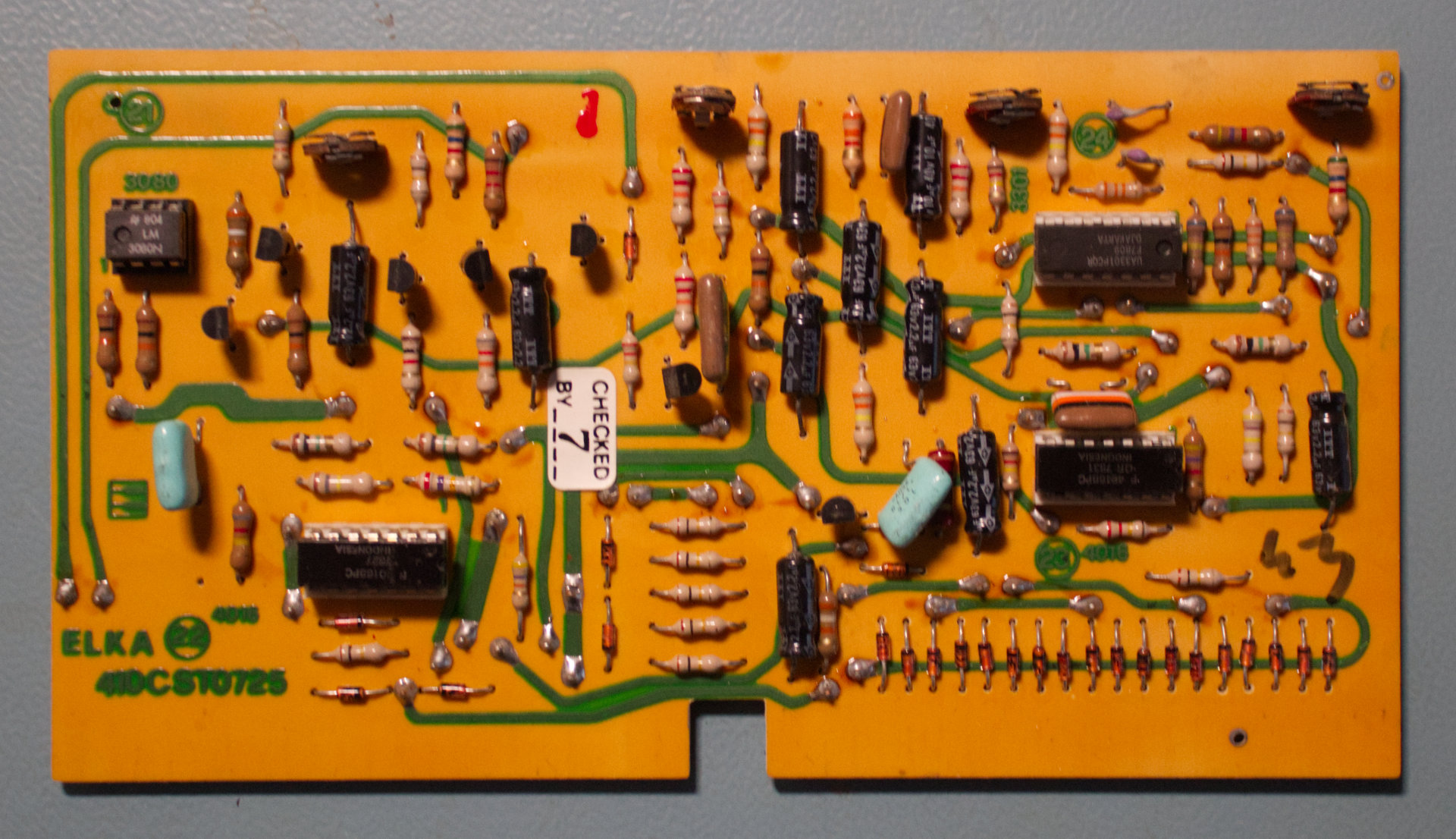

PCB

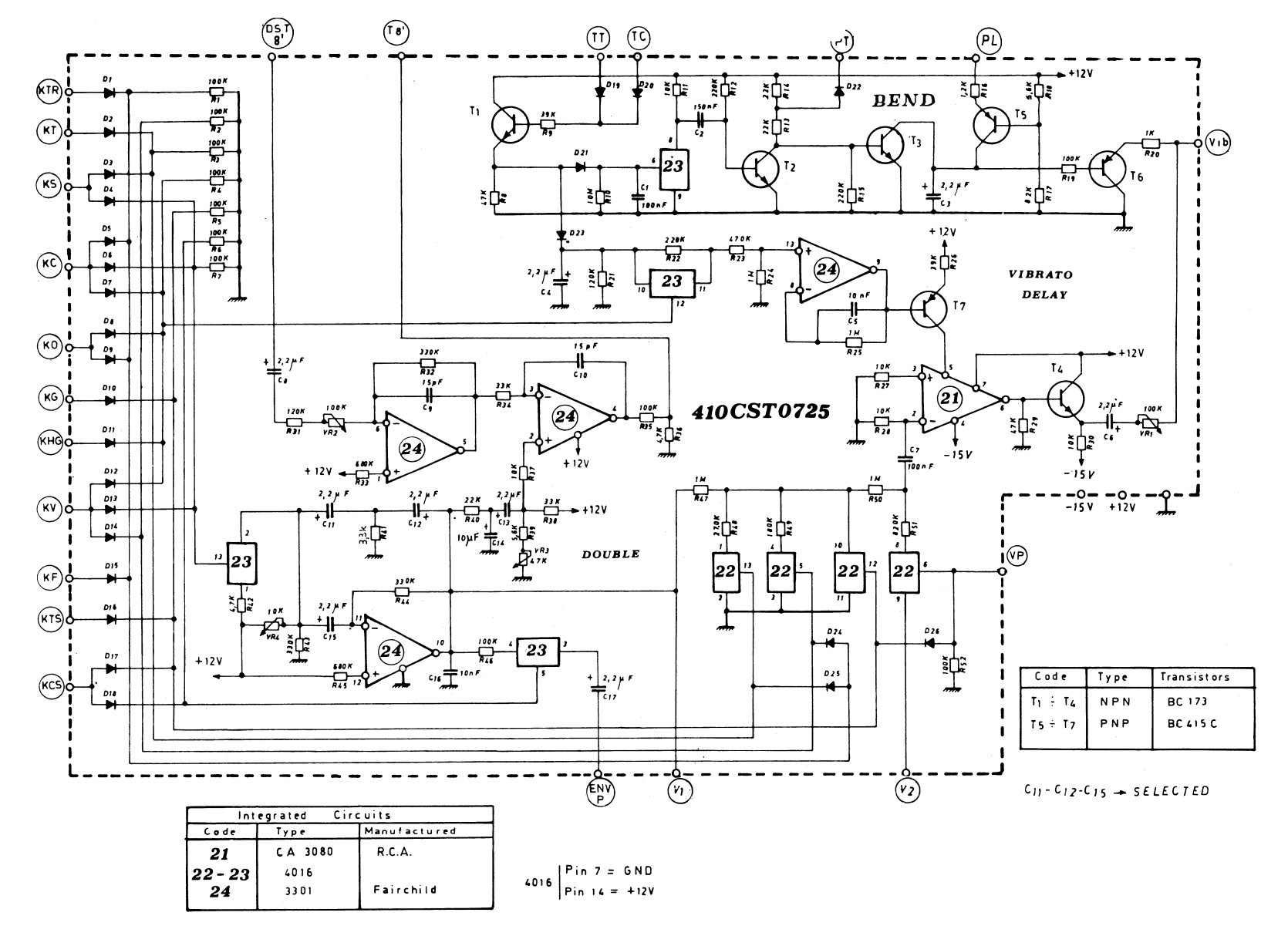

Schematic
