Elka 410CST0724

March 17, 2025

The Elka 410CST0724 is a wave form generator board.

It was used in the Elka Artist 707 from 1977.

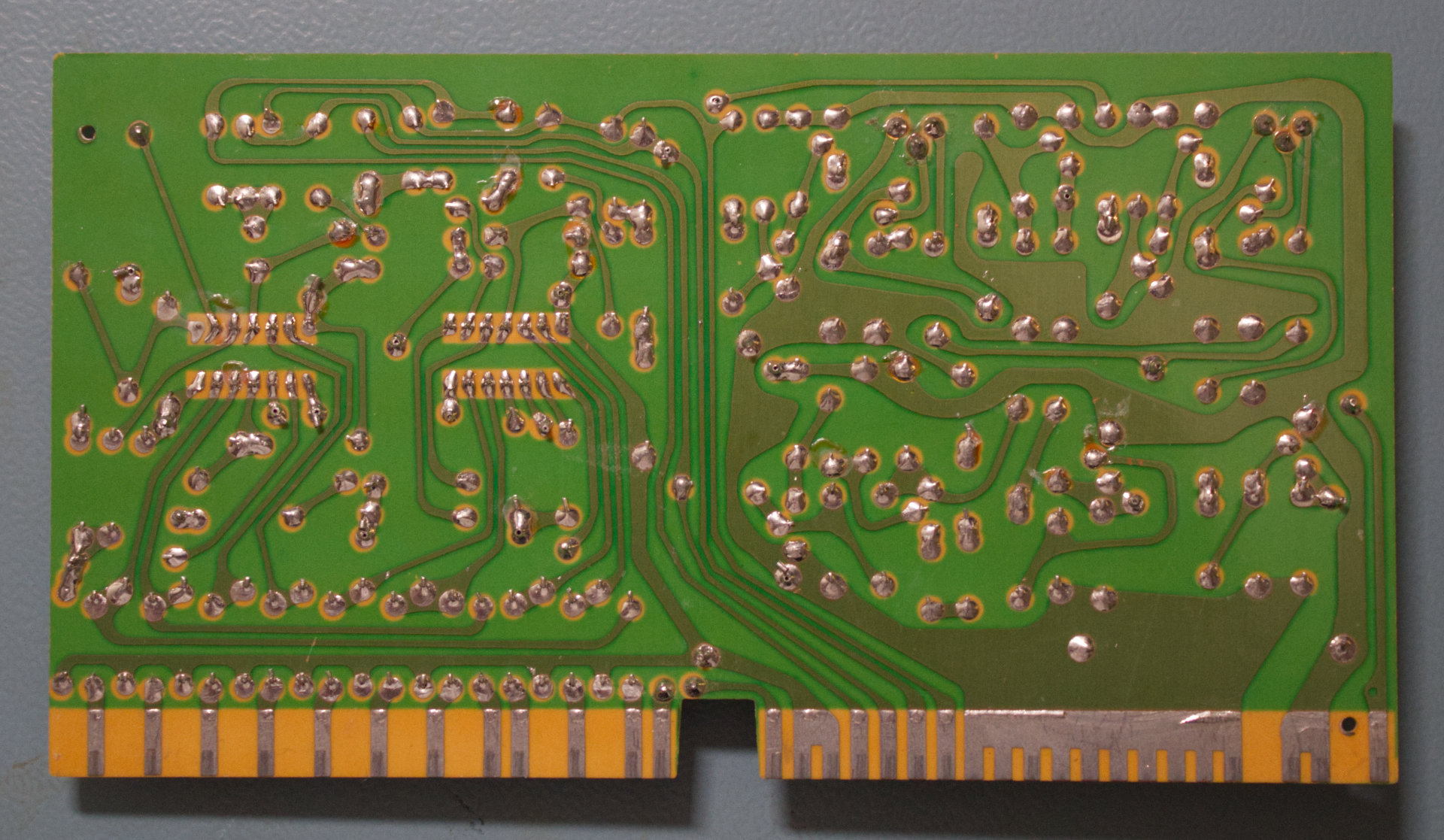

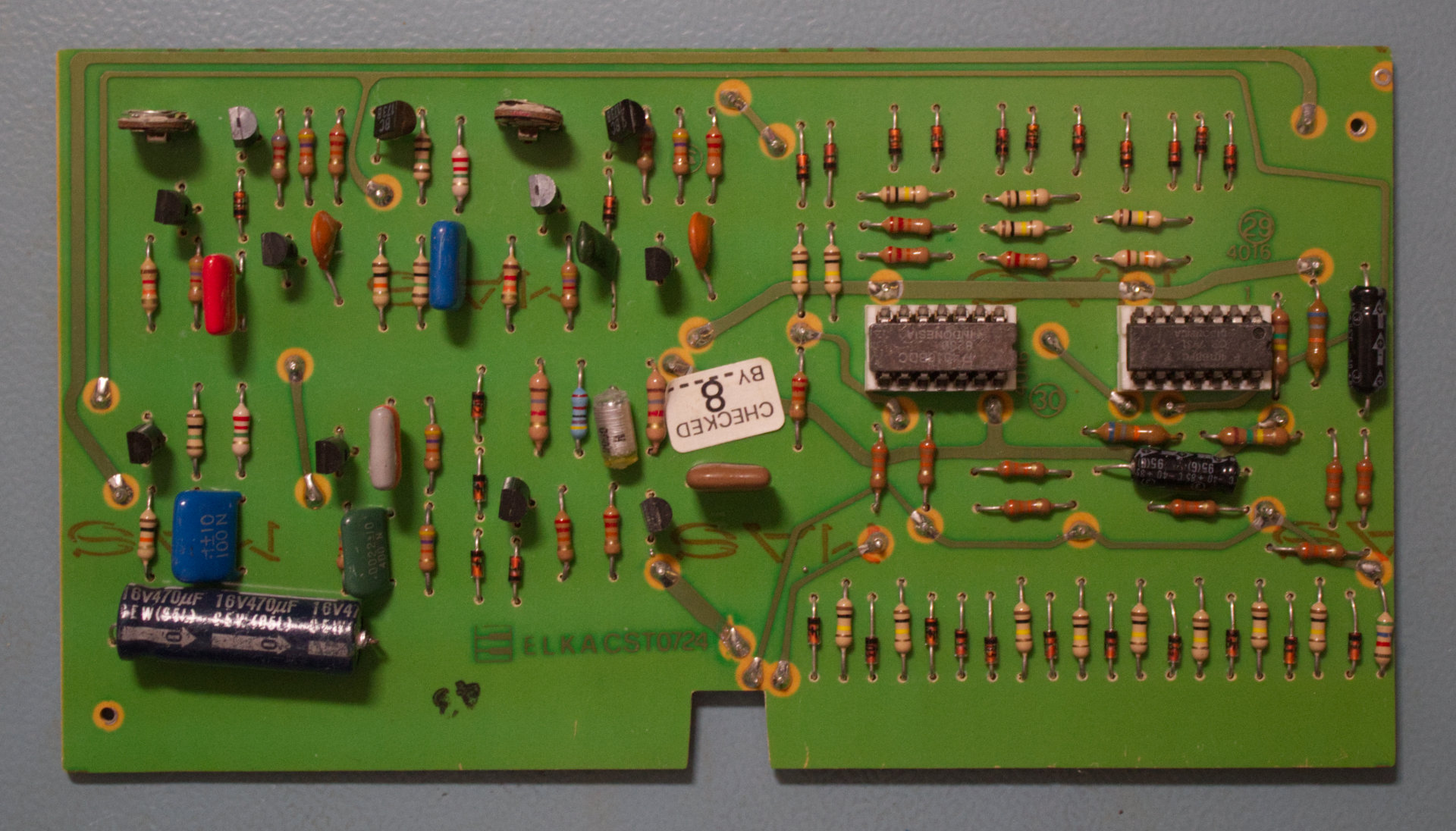

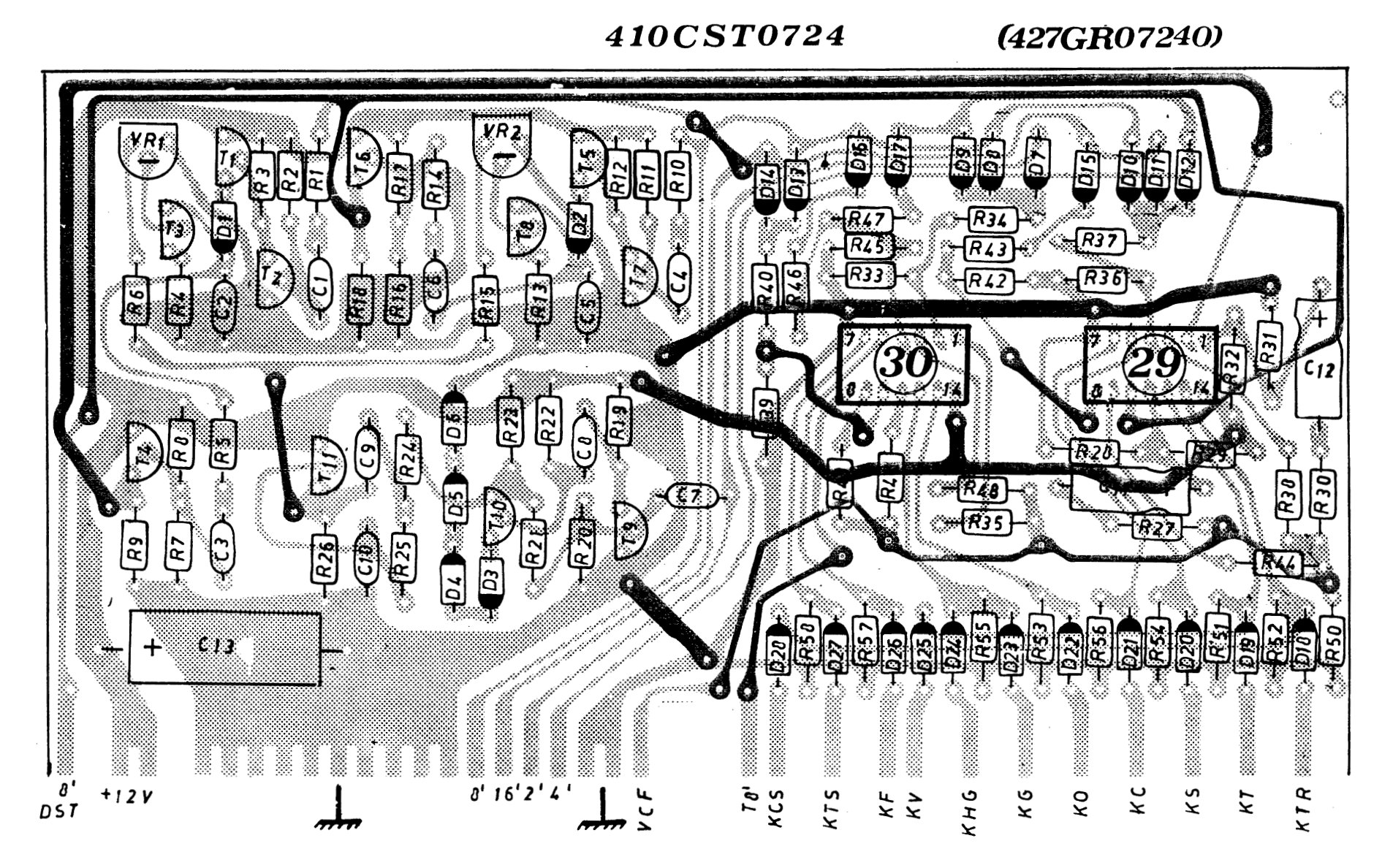

PCB

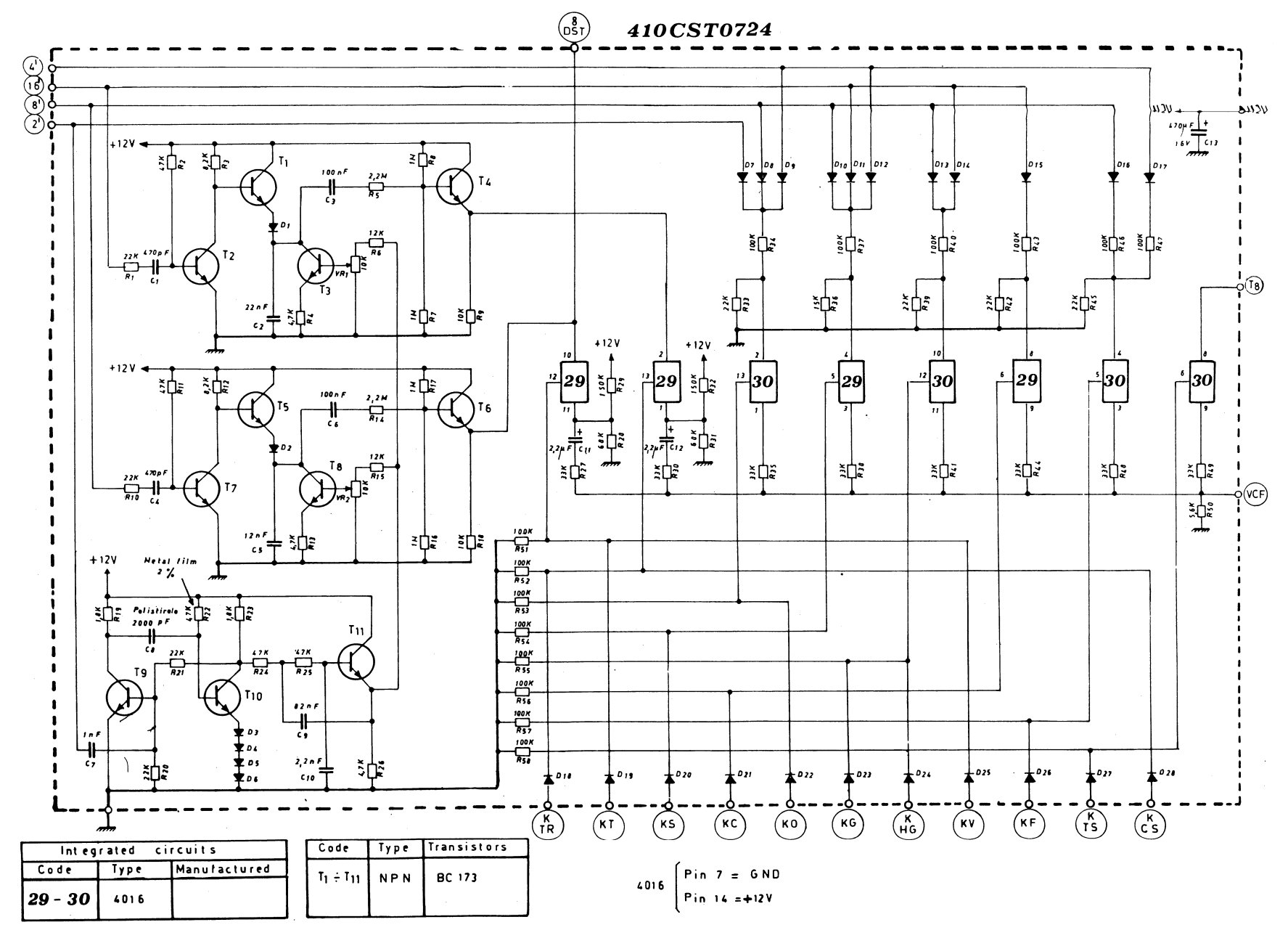

Schematic
